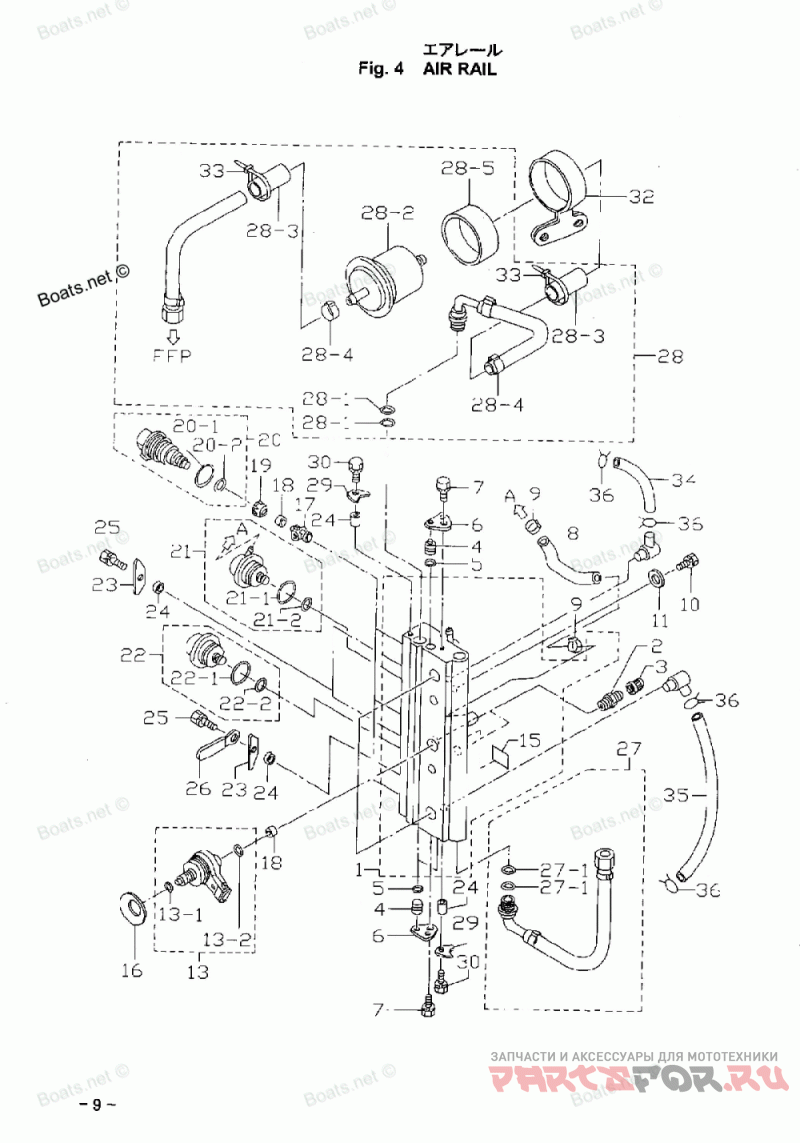

Air Rail

Tohatsu MD90A

Tohatsu
#oem кодцена
1
3T9100800M
AIR RAIL
3
3T5100990M
Крышка клапана
4
3T5101670M
PLUG, ∅10.5
5
3T5101640M
O-RING, 1.9-6.8
6
3T5101650M
STOPPER, PLUG
7
9101036612
Болт
8
98AJ40105M
AIR HOSE
9
3T5100910M
CLAMP, 21/32
10
9101030865
Болт
11
9401030800
Шайба
13-1
3T5103170M
O-RING, 2-13
13-2
3T5103110M
O-RING, 2-52
15
3T5721960M
LABEL, AIR RAIL
16
3T5103120M
SET PIECE AIR INJECTOR
17
3T5103140M
INSERTING FUEL INJECTOR
18
3T5103160M
SEAL, COMPRESSION
19
3T5103150M
ADAPTER, FUEL INJECTOR
20
3T5103000M
FUEL INJECTOR
20-1
3T5103040M
O-RING, 2.8-20.2
20-2
3T5103030M
O-RING, 3.5-7.5
21
3T5101480M
REGULATOR, FUEL
21-1
3T5100950M
O-RING, 2.5-20
21-2
3T5100940M
O-RING, 5-2.5
22
3T5100900M
REGULATOR, AIR
23
3T5103020M
PLATE, FUEL INJECTOR
24
3T5101530M
COLLAR, 6.7-12.7-3
25
9101036616
Болт
26
309069720M
CLAMP, 6.5-47.5P
27-1
3T5101620M
O-RING, 1.9-9.8
28-2
3T5B101430
Топливный Фильтр
28-3
3T5061570M
PROTECT TUBE
28-4
3T5100860M
CLAMP, 21/32
28-5
3T5101450M
RUBBER, FUEL FILTER
29
3T5101690M
PLATE, NIPPLE
30
9101036616
Болт
32
3T5101441M
BAND, FUEL FILTER
33
3T5843980M
BAND, LEAD WIRE 104
34
98AB50650M
FUEL PIPE
35
98AB50230M
AIR PIPE
36
338022150M
Зажим
