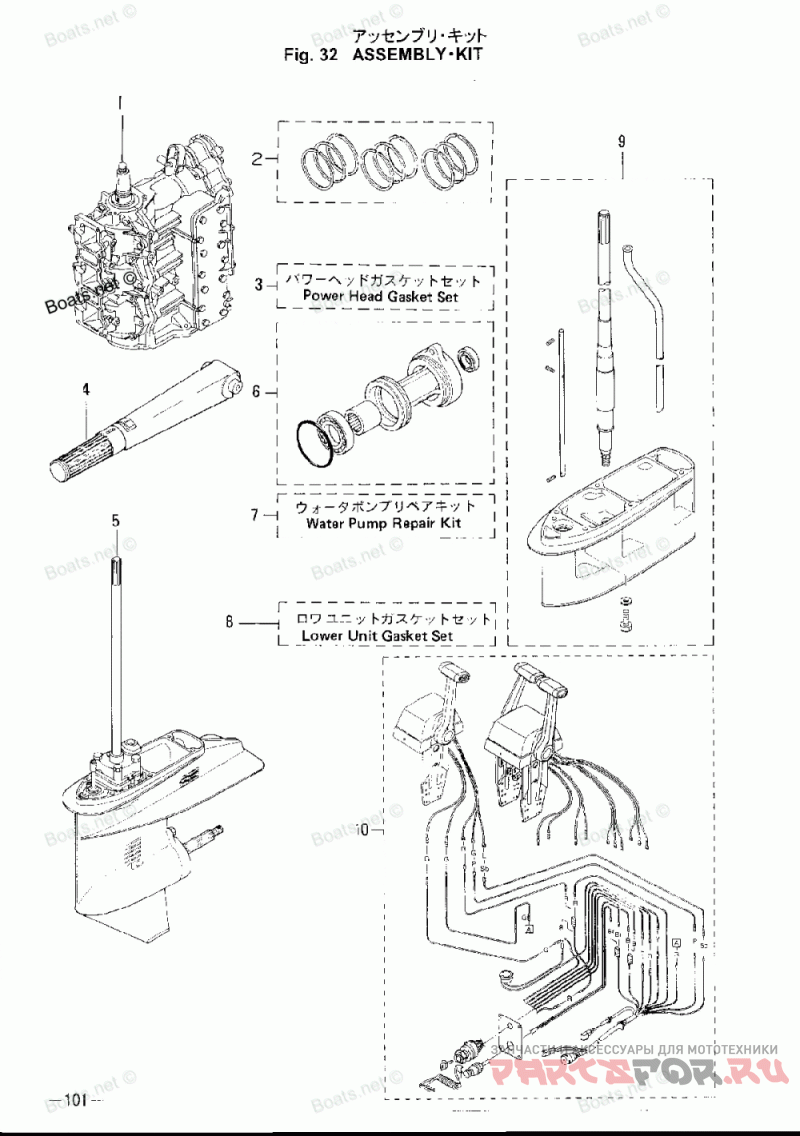

Assembly Kit

Tohatsu MD50A

Tohatsu
#oem кодцена
1
3T5B871100
ENGINE SHORT BLOCK
2
3T5000140M
PISTON RING 1ST (0.5MM O/S)
2
3T5000120M
PISTON RING 2ND (STD)
2
3T5000150M
PISTON RING 2ND (0.5MM O/S)
2
3T5871240M
PISTON RING SET (0.5 O/S)
2
3T5871230M
PISTON RING SET (STANDARD)
2
3T5000110M
PISTON RING 1ST (STANDARD)
3
3T5001220M
OIL SEAL, 25-40-8
3
3T5021040M
Прокладка клапана
3
3B7022350M
O-RING A
3
3B7022360M
Колечко
3
3T5010050M
Прокладка
3
3C8023050M
GASKET, EXHAUST COVER
3
3C8013030M
GASKET, ENGINE BASE
3
3T5010240M
GASKET, CYLINDER HEAD COVER
3
353001080M
O-RING, 2.4 - 44 - 7.7
3
3T5871210M
POWER HEAD GASKET SET
3
3T5010320M
GASKET, THERMOSTAT CAP
3
3C8012150M
OIL SEAL, 16 - 28 - 7
3
346012160M
O-RING, 1.7 - 59
4
3E3S630101
HANDLE ASSEMBLY
5
3T5S873010
LOWER UNIT ASSEMBLY S
5
3T5S873020
LOWER UNIT ASSEMBLY L
5
3T5S873040
LOWER UNIT ASSEMBLY UL
6
3C8S601000
PROPELLER SHAFT HOUSING ASSEMBLY
7
3C8650250M
GUIDE PLATE, WATER PUMP
7
3C8650290M
GASKET, GUIDE PLATE
7
3T5873220M
WATER PUMP REPAIT KIT
7
3C8650110M
LINER, WATER PUMP CASE
7
3C8650212M
Импеллер
7
3T5650180M
GASKET, WATER PUMP CAE
7
332650220M
KEY, WATER PUMP IMPELLER
7
3T5650110M
LINER, PUMP CASE
8
345601030M
O-RING, 3.53 - 69.44
8
3C8610120M
GASKET, DRIVE SHAFT HOUSING
8
3B7600160M
GASKET, 10.1 - 15 - 1
8
334602230M
OIL SEAL, 22-36-10
8
3C8611810M
GASKET, EXHAUST HOUSING
8
3C8602230M
OIL SEAL, 17 - 33 - 6
8
3T5873210M
LOWER UNIT GASKET SET
8
3C8660320M
O-RING, 3.5-21.7
8
345650150M
O-RING, 3.2-47
8
3C8023120M
Прокладка глушителя
8
332660210M
O-RING, 2.4 - 5.8
8
332600060M
GASKET, 8.1-15-1
8
322600060M
GASKET, 8.1 - 15 - 1
9
3C8S873140
EXTENSION HOUSING KIT UL
10
3T5844900M
TOP MOUNT CONTROL KIT
10
3T5845400M
TOP MOUNT CONTROL KIT TWIN
