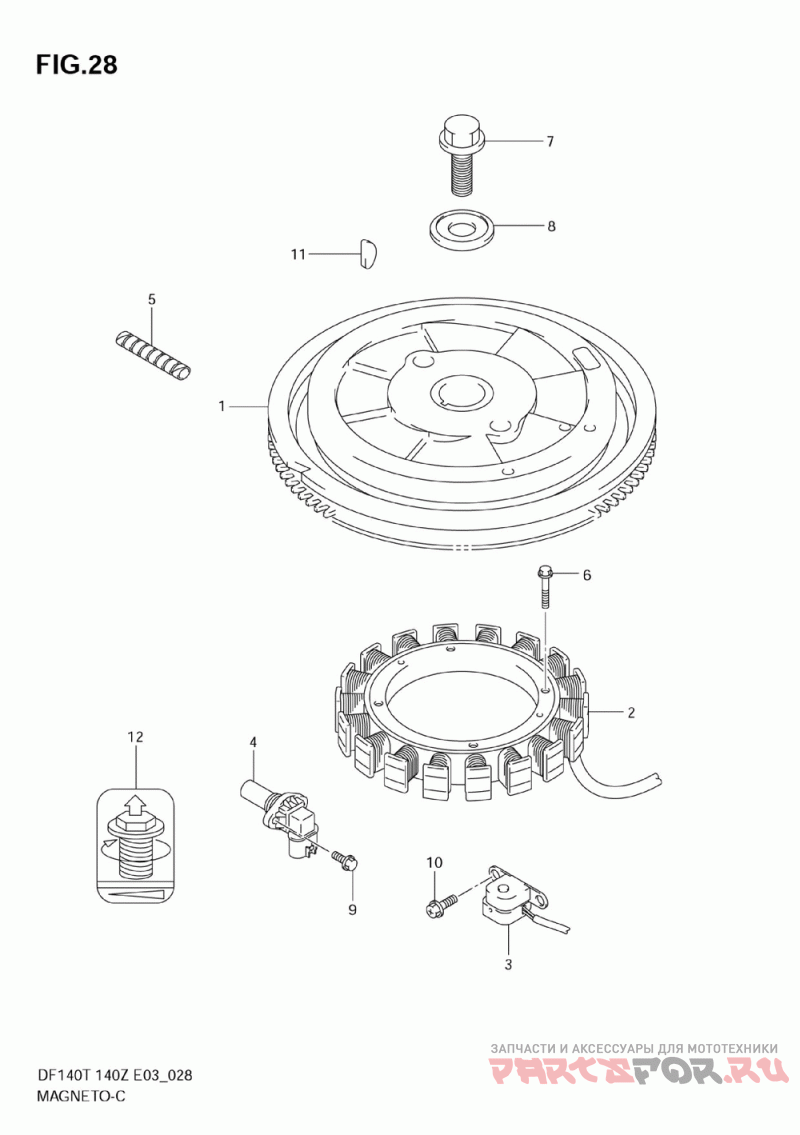

Генератор
Suzuki Marine DF140T,Z
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 32102-92J10 Flywheel Assy ( ) | Flywheel Assy ( ) | |
2-1 | 32120-90J00 Coil, Btry Charg ( ) | Coil, Btry Charg ( ) | |
2-2 | 32120-90J10 Coil, Battery Ch (model:03~05 ) | Coil, Battery Ch (model:03~05 ) | |
2-3 | 32120-90J20 Coil Comp, Batte (model:06~09 ) | Coil Comp, Batte (model:06~09 ) | |
3-1 | 32160-87J00 Coil Assy, Ign T ( ) | Coil Assy, Ign T ( ) | |
3-2 | 32160-87J10 Coil, Ignition T (model:03~09 ) | Coil, Ignition T (model:03~09 ) | |
4 | 33220-76G02 Sensor Assy, Cam ( ) | Sensor Assy, Cam ( ) | |
5 | 33833-91J00 Tube, Sw Lead (l:250->100 <-33833-95510 ) | Tube, Sw Lead (l:250->100 <-33833-95510 ) | |
6 | 09103-06231 Bolt (6x35) ( ) | Bolt (6x35) ( ) | |
7 | 09103-16003 Bolt (16x50) ( ) | Bolt (16x50) ( ) | |
8 | 09160-16048 Washer (16.5x60x7.0) ( ) | Washer (16.5x60x7.0) ( ) | |
9 | 01550-06167 .bolt, Remocon Cable Holder ( ) | .bolt, Remocon Cable Holder ( ) | |
10 | 02162-05167 Screw ( ) | Screw ( ) | |
11 | 08341-31059 Key, Woodruff ( ) | Key, Woodruff ( ) | |
12 | 32118-90J00 Label, Mag Bolt ( ) | Label, Mag Bolt ( ) | |
3-2 | 32160-87L00 Coil Comp, Ign T (model:03~09 ) | Coil Comp, Ign T (model:03~09 ) |
