Gear Housing для лодочных моторов Force H0507X88B (1988)

Москва и регионы России

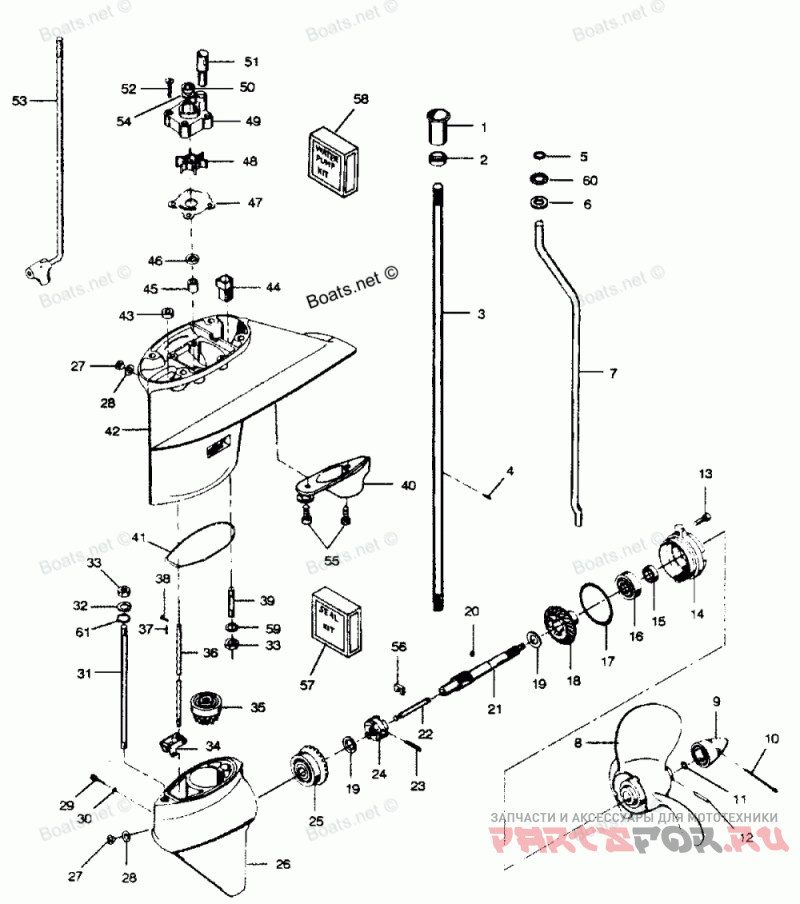

Gear Housing

Force H0507X88B

Gear Housing

#

oem код

название

цена

1

SEAL, DRIVESHAFT SPLINE

SEAL, DRIVESHAFT SPLINE

2

Седло

Седло

3

DRIVESHAFT

DRIVESHAFT

4

DRIVE PIN, WATER PUMP IMPELLER

DRIVE PIN, WATER PUMP IMPELLER

5

**SEAL

**SEAL

6

PLAIN WASHER

PLAIN WASHER

7

INLET WATER LINE

INLET WATER LINE

8

PROPELLER (10-3/8 X 11-1/2 X 3 ALUM)

PROPELLER (10-3/8 X 11-1/2 X 3 ALUM)

9

PROPELLER NUT

PROPELLER NUT

10

COTTER PIN, S.S., 1/8 - 1/2

COTTER PIN, S.S., 1/8 - 1/2

11

SEAL, PROPELLER NUT

SEAL, PROPELLER NUT

12

PROPELLER PIN, PACK OF 6

PROPELLER PIN, PACK OF 6

13

HEX SOCKET HEAD CAP SCREW, S.S., 5/16 - 18 X 9/16

HEX SOCKET HEAD CAP SCREW, S.S., 5/16 - 18 X 9/16

14

PROPELLER SHAFT BEARING CAGE.

PROPELLER SHAFT BEARING CAGE.

15

**SEAL, PROPELLER SHAFT

**SEAL, PROPELLER SHAFT

16

BALL BEARING, PROPELLER SHAFT

BALL BEARING, PROPELLER SHAFT

17

**SEAL, PROPELLER SHAFT BEARING CAGE

**SEAL, PROPELLER SHAFT BEARING CAGE

18

BEVEL GEAR REAR W/BEARING

BEVEL GEAR REAR W/BEARING

19

THRUST WASHER, BEVEL GEAR

THRUST WASHER, BEVEL GEAR

20

BALL, PROPELLER SHAFT

BALL, PROPELLER SHAFT

21

PROPELLER SHAFT ASSEMBLY

PROPELLER SHAFT ASSEMBLY

22

GEAR SHIFT ARM PIN

GEAR SHIFT ARM PIN

23

Пружинный Штифт

Пружинный Штифт

24

Муфта сцепления

Муфта сцепления

25

BEVEL GEAR FRONT W/BEARING AND CUP

BEVEL GEAR FRONT W/BEARING AND CUP

26

GEAR HOUSING LOWER

GEAR HOUSING LOWER

-

GEAR HOUSING KIT.

GEAR HOUSING KIT.

27

PLUG, GEAR HOUSING

PLUG, GEAR HOUSING

28

**WASHER, GEAR HOUSING PLUG

**WASHER, GEAR HOUSING PLUG

29

GEAR SHIFT ARM PIVOT PIN

GEAR SHIFT ARM PIVOT PIN

30

**SEAL, O-RING

**SEAL, O-RING

31

STUD, LONG

STUD, LONG

32

Шайба

Шайба

33

HEX NUT, S.S., 3/8 - 16

HEX NUT, S.S., 3/8 - 16

34

GEAR SHIFT ARM ASSEMBLY

GEAR SHIFT ARM ASSEMBLY

35

BEVEL PINION W/BEARING

BEVEL PINION W/BEARING

36

GEAR SHIFT ROD LOWER

GEAR SHIFT ROD LOWER

37

Шплинт

Шплинт

38

PIN, GEAR SHIFT ROD LOWER

PIN, GEAR SHIFT ROD LOWER

39

STUD, SHORT

STUD, SHORT

40

EXHAUST, SNOUT

EXHAUST, SNOUT

41

**SEAL, GEAR HOUSING

**SEAL, GEAR HOUSING

42

GEAR HOUSING UPPER

GEAR HOUSING UPPER

43

**SEAL, SHIFT ROD LOWER

**SEAL, SHIFT ROD LOWER

44

SCREEN, WATER INLET

SCREEN, WATER INLET

45

BEARING, DRIVESHAFT UPPER

BEARING, DRIVESHAFT UPPER

46

**SEAL, DRIVESHAFT UPPER

**SEAL, DRIVESHAFT UPPER

47

WATER PUMP BACK PLATE

WATER PUMP BACK PLATE

48

WATER PUMP IMPELLER

WATER PUMP IMPELLER

49

WATER PUMP BODY

WATER PUMP BODY

50

DRIVESHAFT SEAL - WATER PUMP

DRIVESHAFT SEAL - WATER PUMP

51

SEAL, INLET WATER LINE, LOWER

SEAL, INLET WATER LINE, LOWER

52

HEX HEAD SCREW, S.S., 1/4 - 20 X 1-1/4

HEX HEAD SCREW, S.S., 1/4 - 20 X 1-1/4

53

GEAR SHIFT ROD INTERMEDIATE

GEAR SHIFT ROD INTERMEDIATE

54

DISC, WATER PUMP

DISC, WATER PUMP

55

HEX HEAD M.S., 1/4 - 20 X 7/8

HEX HEAD M.S., 1/4 - 20 X 7/8

56

Вилка карданного вала

Вилка карданного вала

57

GEAR HOUSING SEAL KIT.

GEAR HOUSING SEAL KIT.

58

WATER PUMP KIT.

WATER PUMP KIT.

SCREW 1/4 - 20 X 1-1/4

SCREW 1/4 - 20 X 1-1/4

Импиллер

Импиллер

BACK PLATE, WATER PUMP

BACK PLATE, WATER PUMP

DRIVE PIN

DRIVE PIN

WATER PUMP BODY

WATER PUMP BODY

59

Стопорная шайба

Стопорная шайба

60

Седло

Седло

61

Уплотнение

Уплотнение
