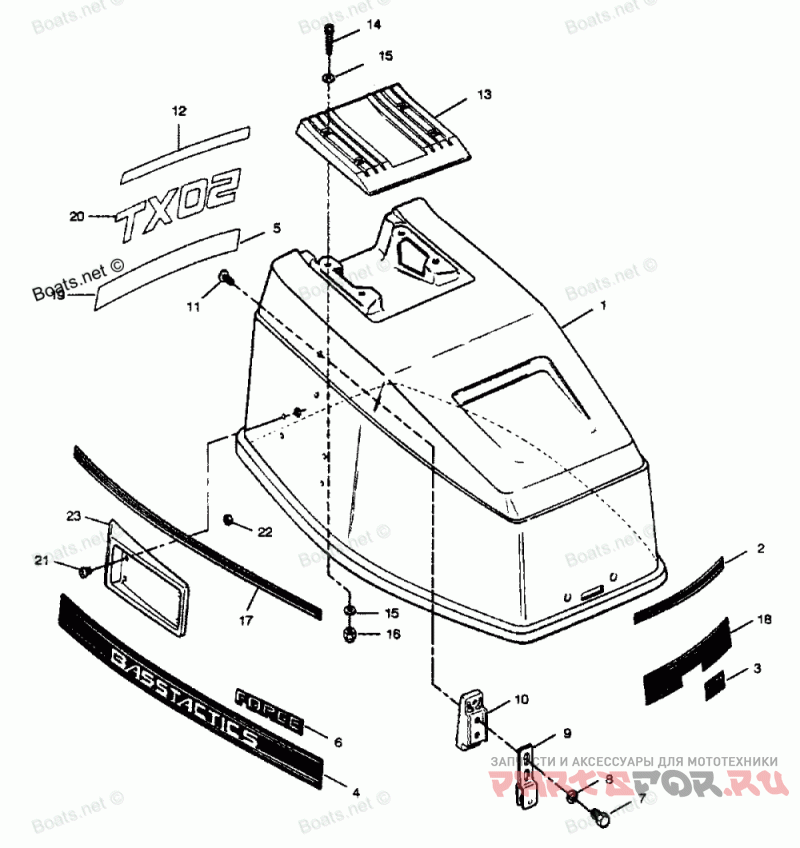

Engine Cover Cajun Models

Force H0507X88B

Force
#oem кодцена
1
FS684712
ENGINE COVER (UNPAINTED)
F2C684712
ENGINE COVER COMPLETE (PAINTED W/DECALS)
2
FM684894
DECAL, TOP FRONT
3
8179851
DECAL, US MARINE
4
FM684396
DECAL, STARBOARD SIDE
FM684397
DECAL, PORT SIDE
5
FM684528
DECAL, "50", BOTTOM REAR
6
F663366
MEDALLION (FORCE)
7
F1857
HEX HEAD MACHINE SCREW, 5/16 - 18 X 5/8 S.S.
8
F8096
Стопорная шайба
9
FA481743
BRACKET, ROLLER
10
F684774
Крепление
11
F1493
PAN HEAD MACHINE SCREW, 1/4 - 20 X 5/8 S.S.
12
FM684585
DECAL, TOP REAR
13
F663269
Ручка
14
F2143
HEX SOCKET HEAD SCREW, 1/4 - 20 X 1 S.S.
15
F2012
Шайба
16
F7024
STOP NUT, 1/4 - 20
17
FM684915
DECAL, TOP SIDE
18
FM684892
DECAL, BOTTOM FRONT
19
FM684392
DECAL, "BASSTACTICS"
20
FM684386
DECAL, "50XT"
21
F2216
HEX SOCKET HEAD CAP SCREW, 8 - 32 X 1/2 S.S.
22
F1770
LOCKNUT, 8 - 32
23
F684681
SCOOP
F684984
BLANKET, TOP SILENCER (NOT SHOWN)
F684985
BLANKET, SIDE SILENCER (NOT SHOWN)
