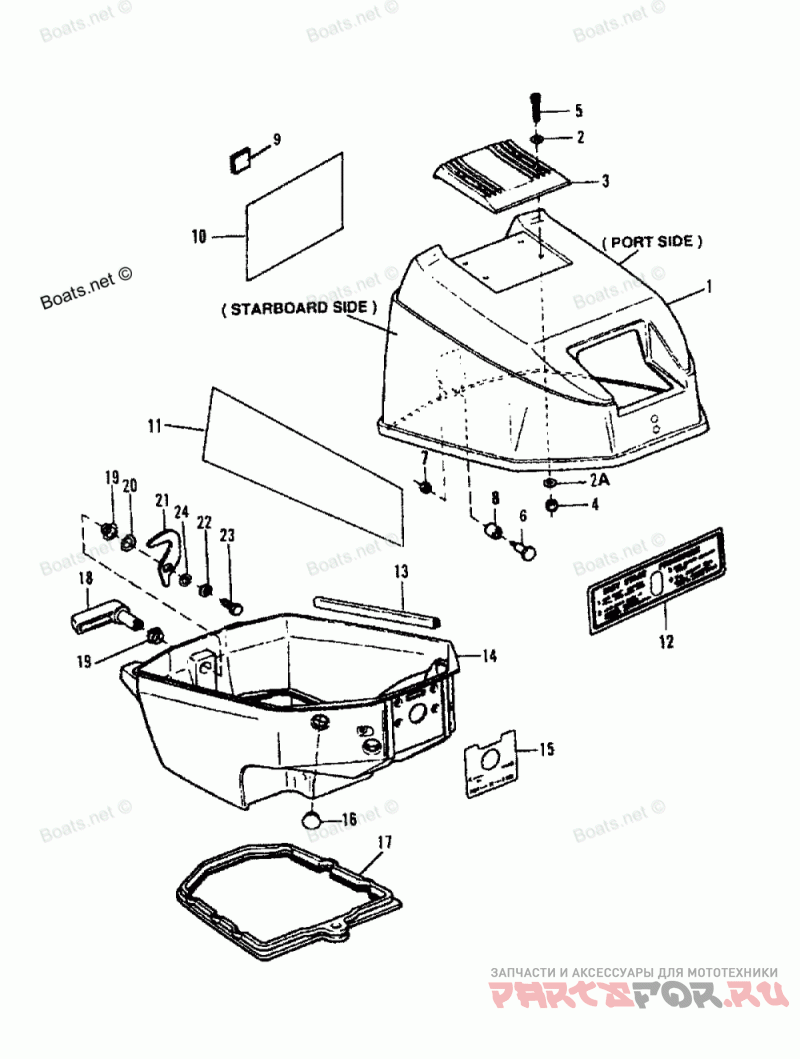

Top Cowl (90a Thru 92b & Ser. # E000001 Thru E127699)

Force H0152C88A

Force
#oem кодцена
1
820154A2
COWL ASSY-TOP
1
820154A4
COWL ASSY-TOP
2
89302
Шайба
2A
F8143
Шайба
3
F681269
HANDLE-TILT
4
F7009
NUT (10-24)
5
F2211
SCREW (10-24 X 5/8")
6
F681026
SCREW-LATCH ROLLER
7
814101
NUT (1/4-20)
8
F681759
ROLLER-LATCH
9
819169
MEDALLION-FORCE (NOT ALL MODELS)
9
F6943661
MEDALLION-US MARINE LOGO (90A/91D)
10
FP736528
DECAL-REAR (9.9)
10
FP737528
DECAL-REAR (15)
11
FP736396
DECAL-STARBOARD
11
FP736397
DECAL-PORT
10
F736528
DECAL-REAR
11
F736396
DECAL-STARBOARD
11
F736397
DECAL-PORT
10
F737528
DECAL-REAR
10
F714528
DECAL-REAR
11
F714396
DECAL-STARBOARD
11
F714397
DECAL-PORT
10
FX714528
DECAL-REAR
11
FX715396
DECAL-STARBOARD
11
FX715397
DECAL-PORT
10
F715528
DECAL-REAR
11
F715396
DECAL-STARBOARD
11
F715397
DECAL-PORT
10
FX715528
DECAL-REAR
12
F681390
DECAL-STARTING (90A/92B & SER. # E000001 - E090399)
14
819280A2
PLATE KIT-SUPPORT (PAINTED)
15
F6817111
PLATE (91A/91B)
15
819281
PLATE (91C/92B & SER. # E000001 THRU E090399)
15
8192811
PLATE (SER. # E090400 THRU E127699)
16
F681226
PLUG (90A/91A)
16
73336
PLUG (91D/92B & SER. # E000001 THRU E127699)
NS
90585
PLUG-STOP SWITCH HOLE (NOT ALL MODELS)
17
819486
SEAL-SUPPORT PLATE
18
FA681469T
HANDLE ASSEMBLY-COWL LATCH (PAINTED)
19
812707
Втулка
20
F2047
WASHER-WAVE
21
F481777
CAM-LATCH SHAFT
22
26992
LOCKWASHER (1/4")
23
28635
SCREW (1/4-20 X 5/8")
24
35044
Шайба
-
826339A94
DECAL SET (9.9 FISH-N-HUNT)
-
820482A93
DECAL SET (9.9/15 FORCE)
-
820731A95
DECAL SET (9.9 FORCE)
-
820732A95
DECAL SET (15 FORCE)
