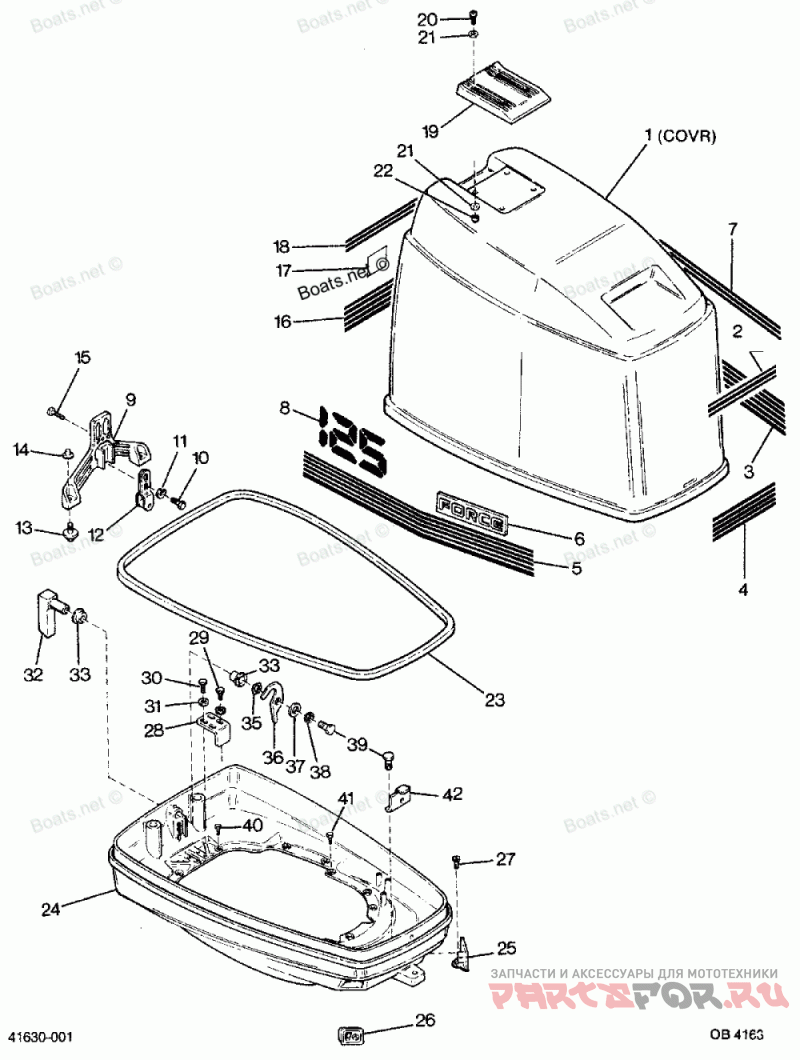

Engine Cover And Support Plate

Force H1258M87B

Force
#oem кодцена
1
FS664712
ENGINE COVER (WITHOUT PAINT, DECALS OR HARDWARE)
F2C664712
ENGINE COVER COMPLETE
2
F663894
DECAL, TOP - FRONT
3
F663397
DECAL, BOTTOM - PORT
4
F663892
DECAL, BOTTOM - FRONT
5
F663396
DECAL, BOTTOM - STARBOARD
6
F663366
MEDALLION - FORCE
7
F663373
DECAL, TOP - SIDE
8
F664386
DECAL, NUMBER 125
9
F663774-1
BRACKET, ENGINE COVER LATCH
10
F1857
HEX CAP SCREW, 5/16 - 18 X 5/8
11
F8096
SPRING LOCKWASHER
12
FA481743
BRACKET, ROLLER LATCH W/ROLLER
13
F481434
GUIDE, ENGINE COVER
14
F2088
Застежка
15
F1493
PAN HD SCREW 5/16 - 18 X 5/8 SS
16
F663528
DECAL, BOTTOM - REAR
17
F665387
DECAL, LOGO (US MARINE)
18
F663585
DECAL, TOP - REAR
19
F663269
Ручка
20
F2143
HEX SOC. HD SCREW, 1/4 - 20 X 1 SS
21
F2012
Шайба
22
F7024
STOP NUT, 1/4 - 20
F663984
BLANKET, TOP (NOT SHOWN)
F664985
BLANKET, SIDE (NOT SHOWN)
23
F663756
Прокладка
24
F663038
Опорная Плита
25
F549189
BUSHING, ELECTRIC CABLE
26
F660189
BUSHING, CABLE ENTRY
27
F1733
PAN HD SCREW, 10 - 24 X 9/16
28
F335654-1
DEFLECTION STOP
29
F1858
HEX CAP SCREW, 5/16 - 18 X 1
30
F1857
HEX CAP SCREW, 5/16 - 18 X 5/8
31
F8096
SPRING LOCKWASHER
32
FA663469
ENGINE COVER LATCH HANDLE W/SHAFT
33
F286818
BEARING, LATCH SHAFT
35
F2047
Упругая Шайба
36
F481777
CAM, LATCH SHAFT
37
F8094
Шайба
38
F8083
Стопорная шайба
39
F1854
HEX CAP SCREW 1/4 - 20 X 5/8
40
F1203
HEX CAP SCREW 1/4 - 20 X 7/8
41
F1238
HEX CAP SCREW 1/4 - 20 X 3/4
42
F663480
Седло
