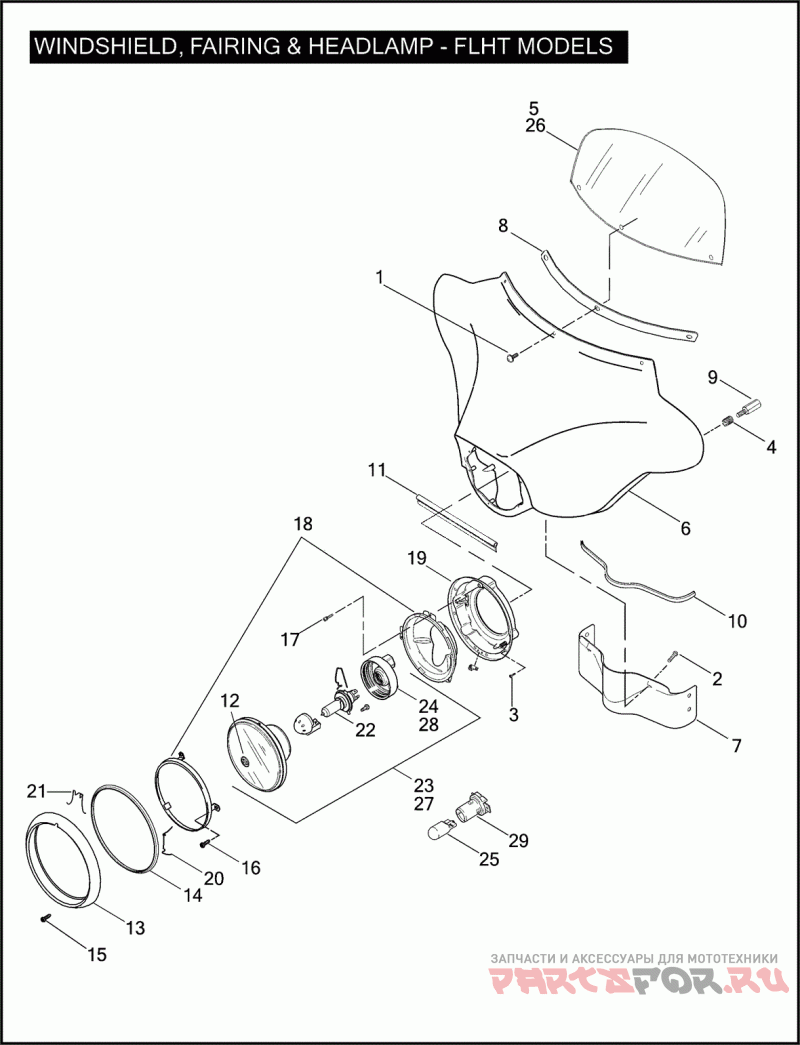

WINDSHIELD, FAIRING & HEADLAMP - FLHT MODELS

Harley Davidson FLHT 1DDV ELECTRA GLIDE STANDARD (2005)

Harley Davidson
#oem кодцена
1
2445
SCREW 1/4-20 X 9/16 BUTTON HD.
2
2446
SCREW 1/4-20 X 5/8 TORX SOCKET BUTTON HD.
3
4790
SCREW NO. 10-16 X 3/4 TORX HD., SELF-TAPPING
4
16585-96
INSERT THREADED
5
58187-96
Ветровое стекло
6
58236-96
FAIRING OUTER (PRIME)
7
58208-96A
SKIRT OUTER FAIRING
8
58247-96
CUSHION TAPE WINDSHIELD MOUNTING
9
58949-96
NUT EXTENSION
10
62786-96
TRIM STRIP SKIRT
11
62787-96
SEAL FAIRING SKIRT
12
67668-05
MEDALLION HEADLAMP
13
67712-83B
DOOR chrome
14
67716-60C
GASKET headlamp door (used w/ 67702-81A)
15
67718-60A
SCREW NO. 8-14 X 1/2 PHILLIPS HD. SELF-TAPPING
16
67721-48
SCREW HEADLAMP RETAINER RING
17
67724-71
ADJUSTING SCREW HEADLAMP (AUSTRALIA, ENGLAND, HDI, JAPAN)
18
67001-08
HEADLAMP RETAINING RING KIT W/ 67721-48 (AUSTRALIA, ENGLAND, HDI, JAPAN)
19
67728-02A
BUCKET ASSEMBLY (AUSTRALIA, ENGLAND, HDI, JAPAN)
20
67780-60A
SPRING BOTTOM
21
67778-60A
TOP SPRING
22
68329-03
BULB
23
68342-05A
LENS ASSEMBLY 7 IN, WITH 67668-05, 68329-03 AND 68390-05 (DOMESTIC)
24
68390-05
чехол
25
53436-97
BULB POSITION LAMP, (AUSTRALIA, ENGLAND, HDI, JAPAN)
26
58324-97
WINDSHIELD (AUSTRALIA, ENGLAND, HDI, JAPAN)
27
68344-05A
REFLECTOR ASSEMBLY LEFT DIP (AUSTRALIA, ENGLAND, JAPAN)
27
68345-05A
REFLECTOR ASSEMBLY RIGHT DIP (HDI, ASIA-PACIFIC)
28
68380-05
BOOT (AUSTRALIA, ENGLAND, HDI, JAPAN)
29
68653-05
SOCKET POSITION LAMP (AUSTRALIA, ENGLAND, HDI, JAPAN)
