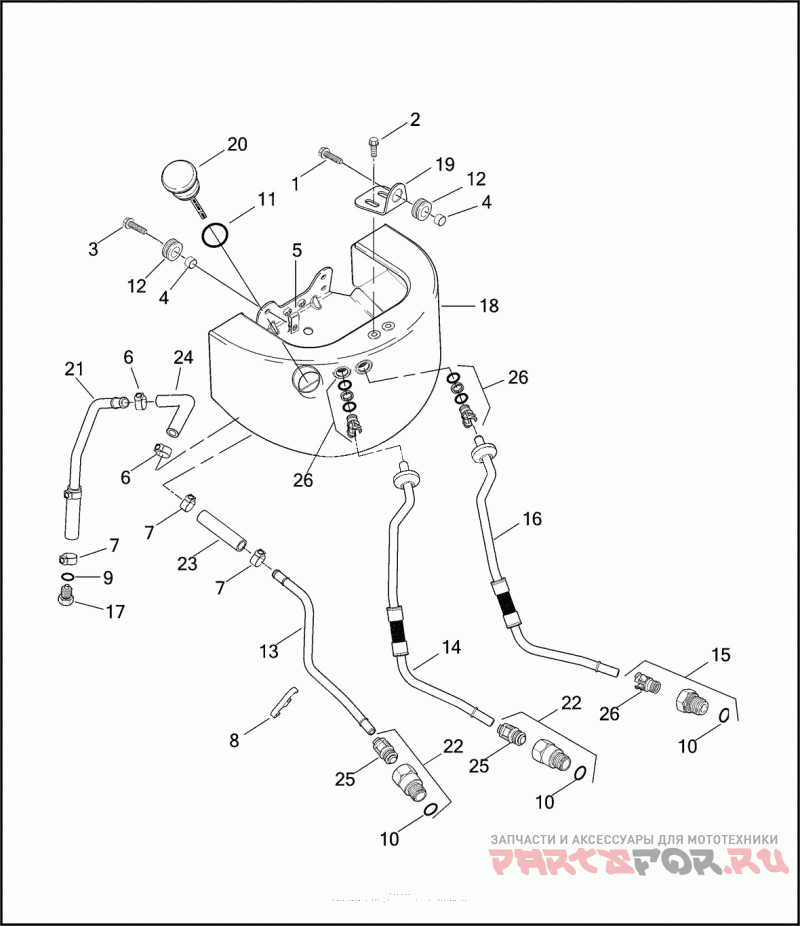

OIL TANK & LINES

Harley Davidson FXSTDSE 1PFD CVO SOFTAIL DEUCE (2003)

Harley Davidson
#oem кодцена
1
4206
SCREW 3/16-18 X 1 HEX HD.
2
4216
SCREW 5/16-18 X 7/8 HEX FLANGE HD. (GRADE 5)
3
4217
SCREW 5/16-18 X 1.0 HEX FLANGE HD. (GRADE 5)
4
5775
WASHER 11/32 X 1/2 X 31/64
5
8144
LOCKNUT 5/16-18
6
10080
CLAMP DRAIN HOSE
7
10208
Зажим
8
10216
CLIP OIL LINES
9
11105
Уплотнительное кольцо
10
11326
Уплотнительное кольцо
11
11345
O-RING DIPSTICK
12
11447
Уплотнитель резиновый
13
33525-00
OIL LINE FEED
14
33531-00
OIL LINE RETURN
15
45468-00
CONNECTOR ASSEMBLY VENT
16
45806-07
OIL LINE VENT
17
60328-98B
DRAIN PLUG W/ 11105
18
62498-01A
OIL TANK (ALSO ORDER 8144) (CHROME)
19
62769-00A
BRACKET OIL TANK TOP
20
62845-00A
FILLER CAP W/ DIPSTICK
21
63553-00B
HOSE OIL TANK DRAIN
22
63601-00
CONNECTOR ASSEMBLY OIL LINE
23
63611-00
HOSE OIL FEED
24
63628-00
ELBOW OIL DRAIN
25
63632-00
OIL LINE RETAINER ASSEMBLY
26
63783-00
OIL LINE RETAINER ASSEMBLY
