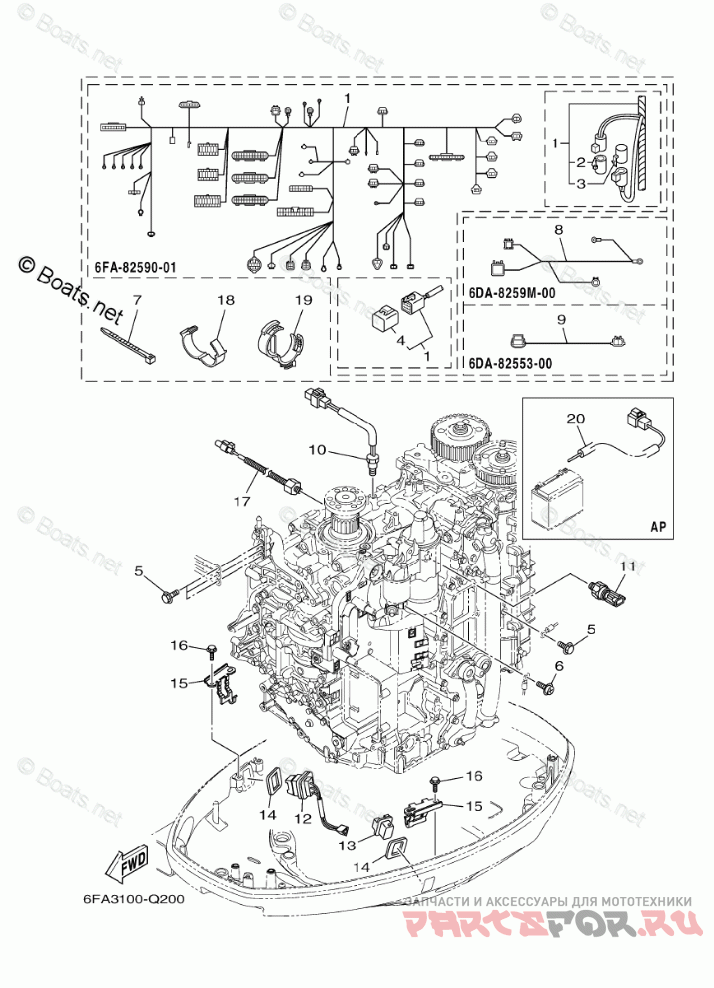

Electrical 4

Yamaha F175XA

Yamaha
#oem кодцена
1
6FA-82590-01-00
WIRE HARNESS ASSY
2
6DA-82582-00-00
CAP 1 (FEMALE)
3
6DA-82582-10-00
CAP 1 (MALE)
4
6Y8-82582-11-00
CAP 1 (4PIN)
5
97595-06516-00
BOLT, WITH WASHER
6
97985-04308-00
SCREW, WITH WASHER
7
90465-11M59-00
CLAMP
8
6DA-8259M-00-00
WIRE HARNESS ASSY 2
9
6DA-82553-00-00
EXTENSION, WIRE LEAD
10
6CB-85790-00-00
THERMOSENSOR ASSY
11
6AW-83651-00-00
SENDER, OIL PRESSURE
12
69J-82563-01-00
TRIM & TILT SWITCH ASSY
13
69J-42723-01-00
COVER, BOTTOM
14
69J-82587-00-00
GASKET
15
63P-83614-01-00
BRACKET
16
95895-06012-00
BOLT, FLANGE
17
6CJ-85780-00-00
SENSOR, KNOCK
18
90464-26001-00
CLAMP
19
90464-30003-00
CLAMP
20
69J-81949-02-00
WIRE, LEAD (ISOLATOR, 3.8M )
