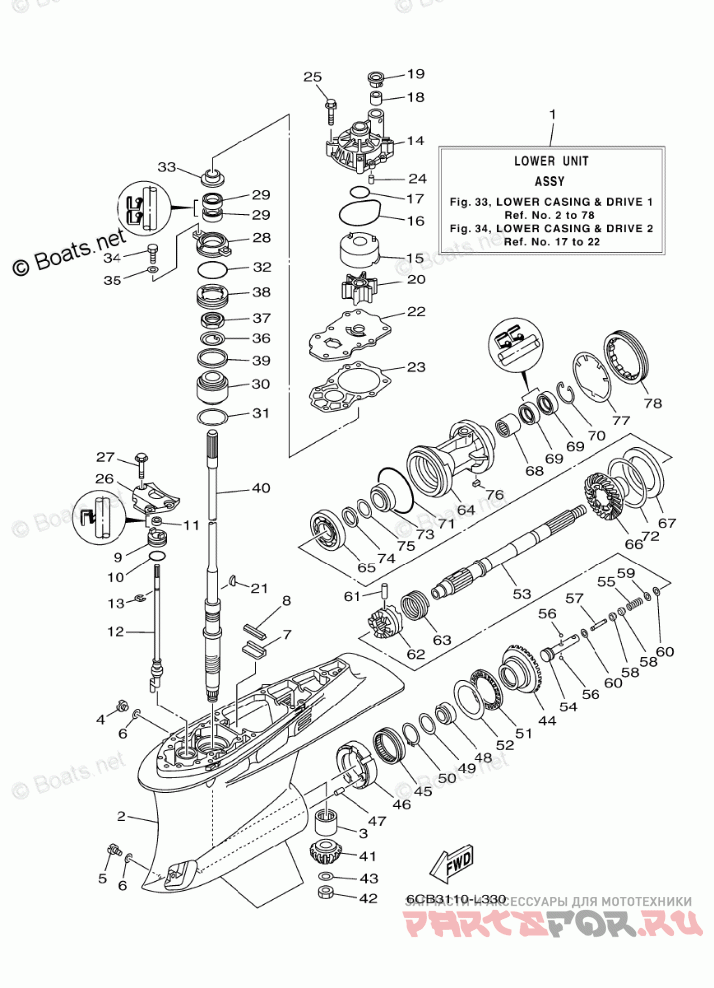

Lower Casing Drive 1

Yamaha VF200LA

Yamaha
#oem кодцена
1
6CB-45300-01-NA
LOWER UNIT ASSY
2
6CB-45311-01-NA
CASING, LOWER
3
93311-928U5-00
BEARING
4
90340-08002-00
PLUG, STRAIGHT SCREW
5
688-45341-10-00
PLUG, DRAIN
6
90430-08020-00
GASKET
7
663-45376-00-00
GUIDE, SEAL DAMPER
8
688-45375-00-00
DAMPER, SEAL
9
65N-45321-00-00
PLATE
10
93210-33M49-00
O-RING
11
93106-09014-00
OIL SEAL
12
6CB-44150-00-00
SHIFT CAM ASSY
13
99001-08600-00
CIRCLIP
14
61A-44311-01-00
HOUSING, WATER PUMP
15
61A-44322-02-00
INSERT, CARTRIDGE
16
93210-86M38-00
O-RING
17
93210-37160-00
O-RING
18
6E5-44365-00-00
DAMPER, WATER SEAL 1
19
6E5-44312-00-00
COVER, WATER PUMP HOUSING
20
6E5-44352-01-00
IMPELLER
21
90280-04002-00
KEY, WOODRUFF
22
6CB-44323-00-00
OUTER PLATE, CARTRIDGE
23
6CB-44315-00-00
GASKET, WATER PUMP
24
93606-12019-00
PIN, DOWEL
25
90119-08M14-00
BOLT, WITH WASHER
26
6CB-44312-00-00
COVER, WATER PUMP HOUSING
27
90119-08M32-00
BOLT, WITH WASHER
28
6CB-45335-00-9S
HOUSING, OIL SEAL
29
93101-28M16-00
OIL SEAL
30
93332-000A3-00
BEARING
31
6CB-45587-40-00
SHIM (T:0.30MM)
31
6CB-45587-30-00
SHIM (T:0.18MM)
31
6CB-45587-20-00
SHIM (T:0.15MM)
31
6CB-45587-10-00
SHIM (T:0.12MM)
31
6CB-45587-00-00
SHIM (T:0.10MM)
31
6CB-45587-50-00
SHIM (T:0.40MM)
31
6CB-45587-60-00
SHIM (T:0.50MM)
32
93210-58144-00
O-RING
33
6E5-45344-00-00
COVER, OIL SEAL
34
97095-08020-00
BOLT
35
92995-08600-00
WASHER
36
90214-30003-00
WASHER, CLAW
37
90170-30M18-00
NUT
38
6CB-45244-00-00
NUT
39
6CB-45539-00-00
SPACER 2
40
6CB-45501-01-00
DRIVE SHAFT COMP.
41
6CB-45551-00-00
PINION (12T)
42
90170-16M19-00
NUT
43
90201-16M00-00
WASHER, PLATE
44
6CB-45561-00-00
GEAR 1 (21T)
45
93311-85894-00
BEARING
46
6CB-45824-00-00
ADAPTER
47
93608-16M16-00
PIN, DOWEL
48
93332-000A4-00
BEARING
49
90201-41008-00
WASHER, PLATE
50
99009-47500-00
CIRCLIP
51
93340-67011-00
BEARING
52
6CB-45567-50-00
SHIM (T:2.15MM)
52
6CB-45567-00-00
SHIM (T:2.00MM)
52
6CB-45567-10-00
SHIM (T:2.03MM)
52
6CB-45567-20-00
SHIM (T:2.06MM)
52
6CB-45567-30-00
SHIM (T:2.09MM)
52
6CB-45567-40-00
SHIM (T:2.12MM)
53
6CB-45611-00-00
SHAFT, PROPELLER
54
6CB-45634-00-00
SLIDE, SHIFT
55
90501-10M77-00
SPRING, COMPRESSION
56
93501-04011-00
BALL
57
6H1-45668-00-00
SHAFT, FREE 1
58
61A-45635-00-00
PLUNGER, SHIFT
59
90201-02M00-00
WASHER, PLATE
60
90183-02M03-00
NUT, SPRING
61
90250-08M07-00
PIN, STRAIGHT
62
6CB-45631-00-00
CLUTCH, DOG
63
6E5-45633-01-00
RING, CROSS PIN
64
6CB-45332-00-CA
HOUSING, BEARING
65
93306-209U0-00
BEARING
66
6CB-45571-00-00
GEAR 2 (21T)
67
6CB-45576-00-00
WASHER, THRUST 2
68
93315-43061-00
BEARING
69
93101-30M17-00
OIL SEAL
70
93450-45M02-00
CIRCLIP
71
93211-02001-00
O-RING
72
6CB-45577-60-00
SHIM (T:0.50MM)
72
6CB-45577-10-00
SHIM (T:0.12MM)
72
6CB-45577-20-00
SHIM (T:0.15MM)
72
6CB-45577-40-00
SHIM (T:0.30MM)
72
6CB-45577-30-00
SHIM (T:0.18MM)
72
6CB-45577-50-00
SHIM (T:0.40MM)
72
6CB-45577-00-00
SHIM (T:0.10MM)
73
93332-000A5-00
BEARING
74
90201-32008-00
WASHER, PLATE
75
676-45567-00-00
SHIM (T:0.7MM)
75
676-45567-10-00
SHIM (T:0.8MM)
75
676-45567-20-00
SHIM (T:0.9MM)
75
676-45567-30-00
SHIM (T:1.0MM)
75
676-45567-40-00
SHIM (T:1.1MM)
75
676-45567-50-00
SHIM (T:1.2MM)
76
90282-05008-00
KEY, STRAIGHT
77
6CB-45383-00-00
WASHER, CLAW
78
6CB-45384-00-00
NUT
