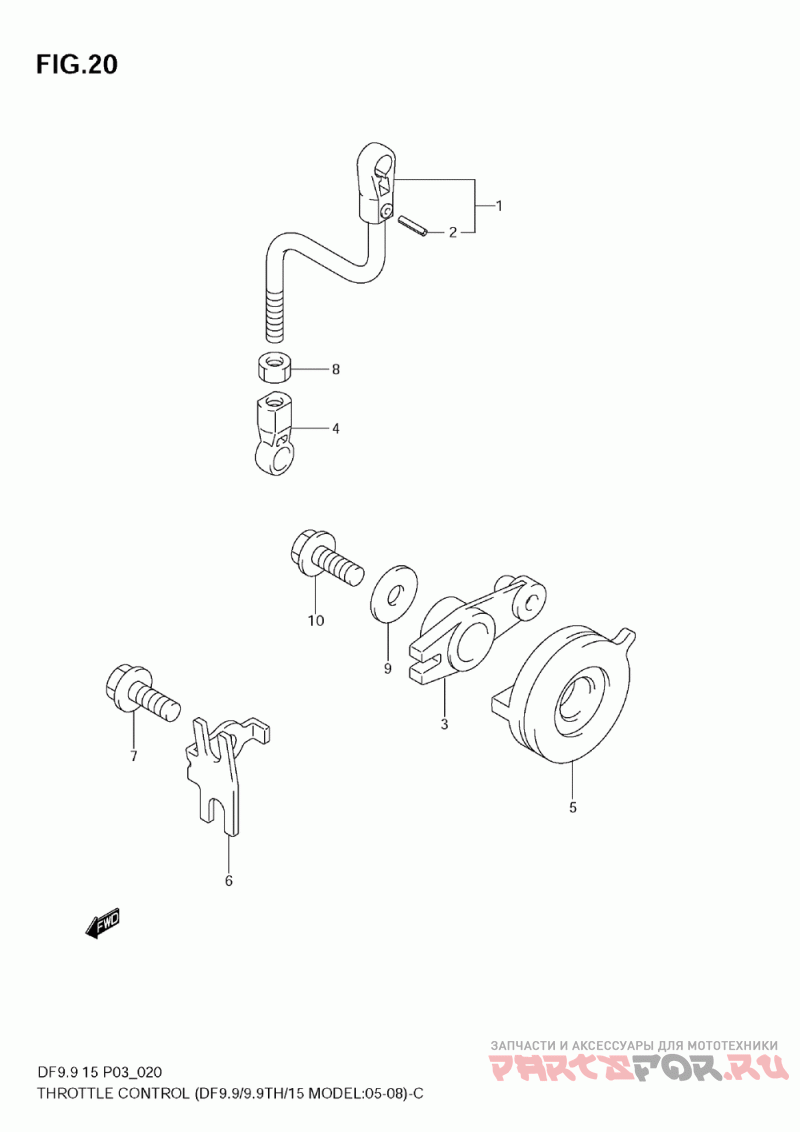

Управление дросселем (для моделей DF9.9/9,9th/ DF15 выпуска 2005-2009)
Suzuki Marine DF9.9/DF15
| # | oem код | название | цена |
|---|---|---|---|
1 | 13510-93E10 Rod Comp, Thrott | Rod Comp, Thrott | |
2 | 09205-02006 Штифт | Штифт | |
3 | 19121-94J00 Рычаг газа | Рычаг газа | |
4 | 19131-95502 Штуцер | Штуцер | |
5 | 19148-94J00 Drum, Throttle | Drum, Throttle | |
6 | 19184-94J00 Bracket, Throttl | Bracket, Throttl | |
7 | 01550-06167 .bolt, Remocon Cable Holder (model:06~09 Refer To Fig.21(d- 8) For Df9.9r/9.9t Model:05~09 ) | .bolt, Remocon Cable Holder (model:06~09 Refer To Fig.21(d- 8) For Df9.9r/9.9t Model:05~09 ) | |
8 | 09140-05005 .nut (<-19133-94j00) | .nut (<-19133-94j00) | |
9 | 09160-06084 Шайба (6.5x18x1.6) | Шайба (6.5x18x1.6) |
