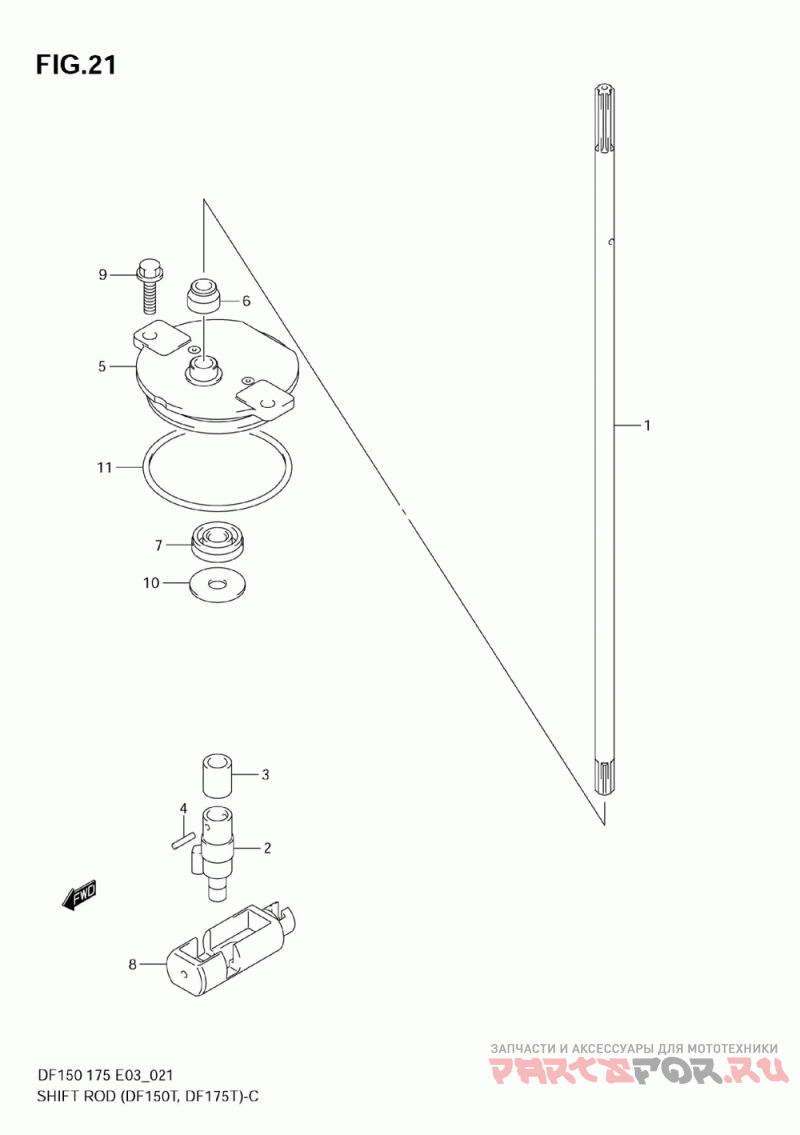

Вал сцепления (df150t,df175t)
Suzuki Marine DF150/DF175
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 25111-96J00 Rod, Shift(l) ( ) | Rod, Shift(l) ( ) | |
1-2 | 25111-93J00 Rod, Shift(ul) ( ) | Rod, Shift(ul) ( ) | |
2 | 25131-93J00 Yoke, Shifter ( ) | Yoke, Shifter ( ) | |
3 | 25232-96302 Magnet, Gear Cas ( ) | Magnet, Gear Cas ( ) | |
4 | 09205-02006 Pin ( ) | Pin ( ) | |
5 | 25141-93J00 Housing, Shift R ( ) | Housing, Shift R ( ) | |
6 | 25223-94400 Seal, Shift Rod ( ) | Seal, Shift Rod ( ) | |
7 | 09282-08005 Seal, S/rod Gui ( ) | Seal, S/rod Gui ( ) | |
8 | 25321-93J00 Slider, Shift Ho ( ) | Slider, Shift Ho ( ) | |
9 | 29116-93J00 Bolt (<-09116-06106 ) | Bolt (<-09116-06106 ) | |
10 | 09160-08151 Washer (<-09160-08133 ) | Washer (<-09160-08133 ) | |
11 | 09280-60007 O-ring,shi Hsg( ( Refer To Fig.22 (d-4) For Df150z, Df175z ) | O-ring,shi Hsg( ( Refer To Fig.22 (d-4) For Df150z, Df175z ) |
