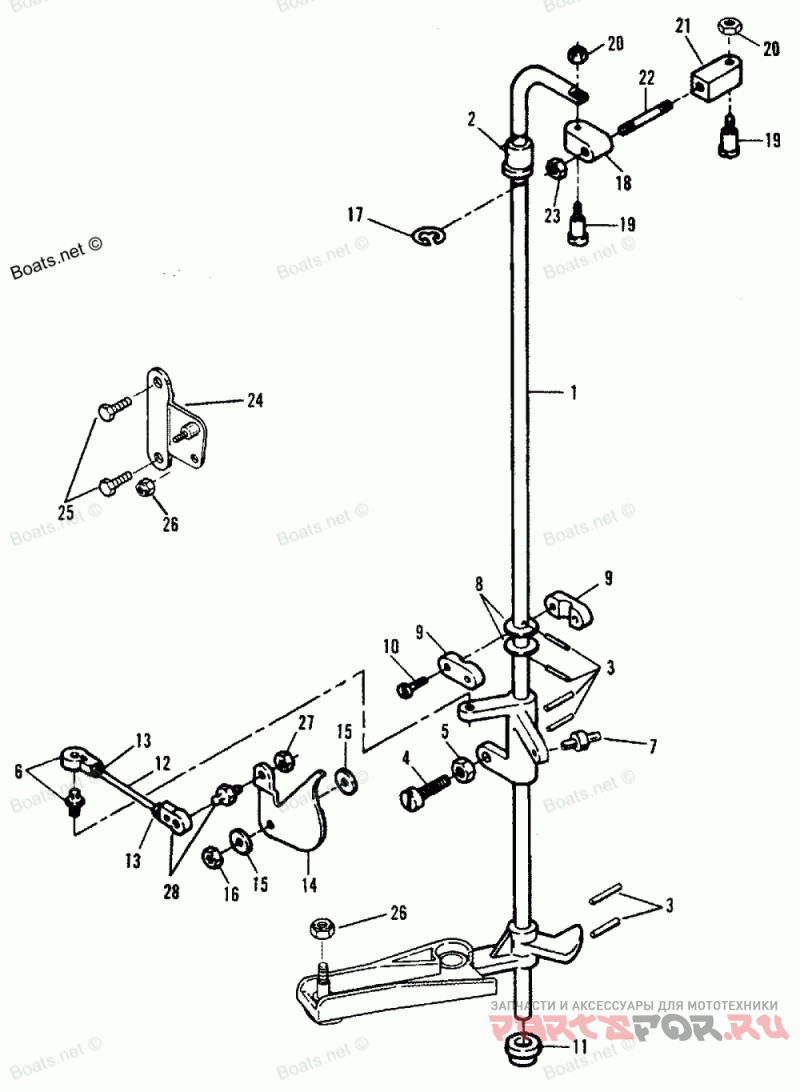

Throttle Linkage (0e009500 Thru 0e093699)

Force H1501X91B

Force
#oem кодцена
1
819475A1
TOWERSHAFT ASSEMBLY
2
819513
Втулка
3
38489
PIN-Roll
4
F1504
SCREW (.250-20 x 1.250)
5
64015
NUT (.250-20)
6
8177471
BALL JOINT ASSEMBLY
7
F1727
RIVET (Nylon)
8
F1856
Шайба
9
F607689
BEARING-Towershaft Center
10
19931088
SCREW (#10-24 x .875)
11
F40689-1
BEARING-Towershaft Bottom
12
819002
LINK-Throttle
13
68219
NUT (#10-32)
14
F440192-2
CAM-Throttle
15
F269319
BUSHING-Throttle Cam
16
72008
NUT (.250-20)
17
13194
Стопорное полукольцо
18
F499035
END-Control Rod
19
F499026
SWIVEL-Towershaft
20
F7009
NUT (#10-24)
21
F499036-1
END-Control Rod (.250-28 LH)
22
F85445-1
ROD-Spark Control
23
F2015
NUT (.250-28)
24
819458A1
BRACKET ASSEMBLY-Remote Cable
25
49668
SCREW (.250-20 x .750)
26
34059
NUT (#10-32)
27
20110
NUT (#10-32)
28
8177471
BALL JOINT ASSEMBLY
