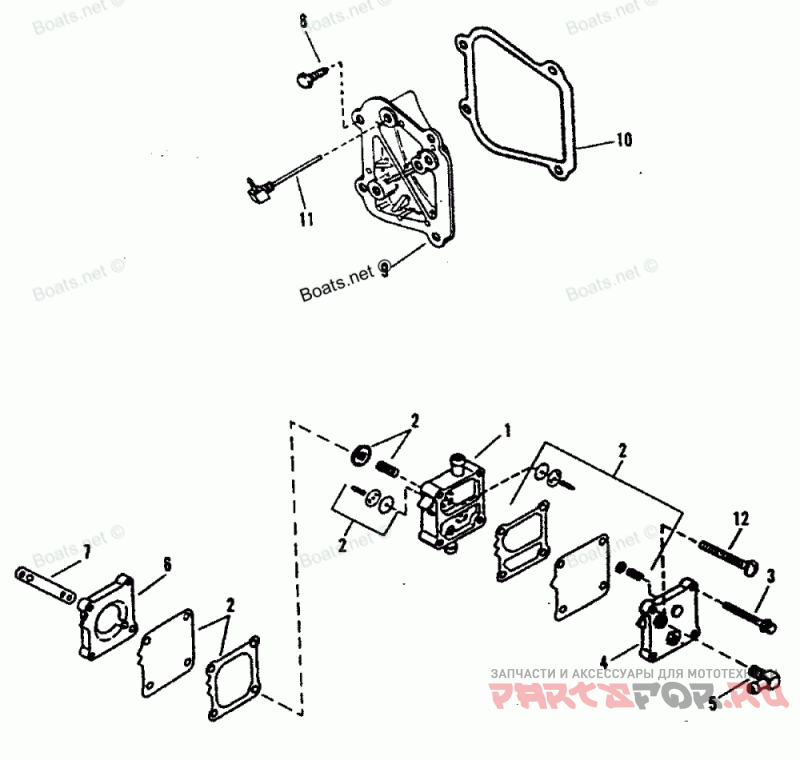

Fuel Pump Assembly (0e065372 Thru 0e093699)
Force H1501E91D
| # | oem код | название | цена |
|---|---|---|---|
1 | 14360A49 PUMP KIT-Fuel | PUMP KIT-Fuel | |
2 | 42990A10 DIAPHRAGM KIT | DIAPHRAGM KIT | |
3 | 82104540 SCREW (M5 x 40) | SCREW (M5 x 40) | |
4 | 987752 PLATE-Fuel Pump | PLATE-Fuel Pump | |
5 | 99664 Колено | Колено | |
6 | 144303 BASE-Fuel Pump | BASE-Fuel Pump | |
7 | 987691 GASKET-Fuel Pump Base | GASKET-Fuel Pump Base | |
8 | 98254 SCREW (.250-20 x .620) | SCREW (.250-20 x .620) | |
9 | 8178702 COVER-Fuel Pump | COVER-Fuel Pump | |
10 | 820500 GASKET-Fuel Pump Cover | GASKET-Fuel Pump Cover | |
11 | F743314 ELBOW-Recirculating | ELBOW-Recirculating | |
12 | 16452 SCREW (#12-24 x 2.00) | SCREW (#12-24 x 2.00) | |
- | FG1027-2 GASKET SET-Powerhead | GASKET SET-Powerhead | |
- | 818155A16 POWERHEAD ASSEMBLY | POWERHEAD ASSEMBLY |
