Ignition Components (90a,91c) для лодочных моторов Force H1201F91C (1991)

Москва и регионы России

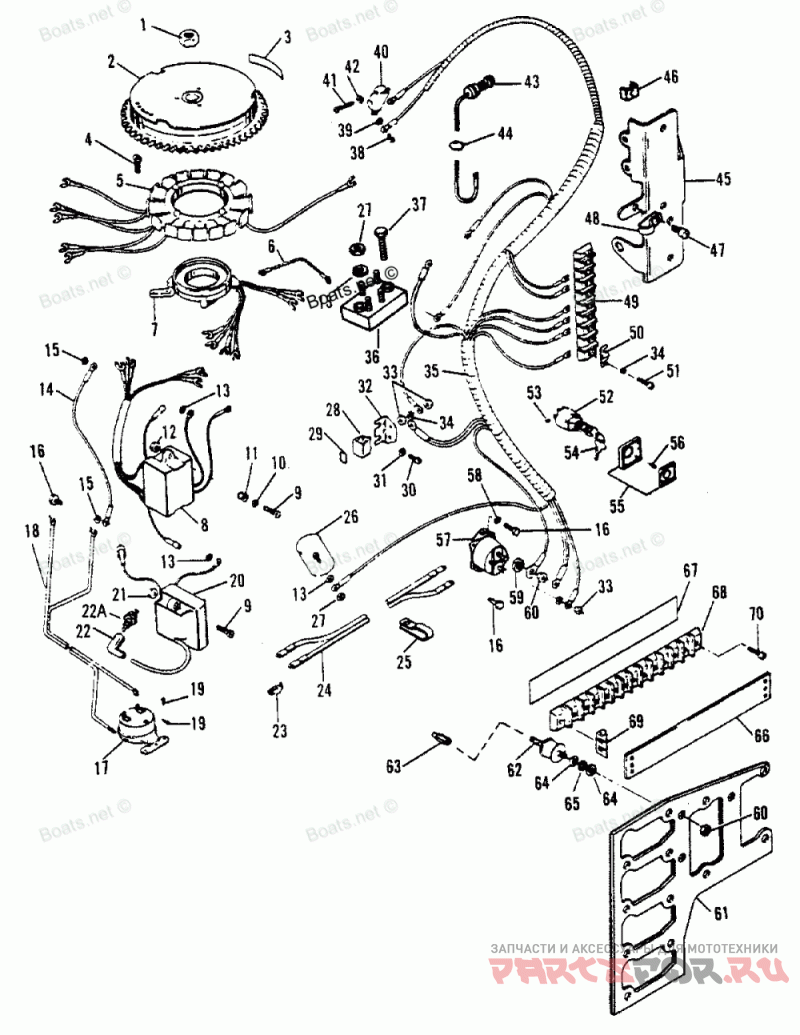

Ignition Components (90a,91c)

Force H1201F91C

Ignition Components (90a,91c)

#

oem код

название

цена

1

NUT (3/4-16)

NUT (3/4-16)

2

FLYWHEEL KIT

FLYWHEEL KIT

3

DECAL KIT-SHIFT TO NEUTRAL

DECAL KIT-SHIFT TO NEUTRAL

4

SCREW (12-24 X 1")

SCREW (12-24 X 1")

5

STATOR ASSEMBLY

STATOR ASSEMBLY

6

WIRE-GROUND

WIRE-GROUND

7

TRIGGER ASSEMBLY

TRIGGER ASSEMBLY

8

CD MODULE (BLUE)

CD MODULE (BLUE)

9

SCREW (1/4-20 X 7/8")

SCREW (1/4-20 X 7/8")

10

Шайба

Шайба

11

GROMMET-CD MOUNTING

GROMMET-CD MOUNTING

12

NUT (1/4-20)

NUT (1/4-20)

13

LOCKWASHER (#8)

LOCKWASHER (#8)

14

WIRE-GROUND

WIRE-GROUND

15

LOCKWASHER (1/4" INTERNAL)

LOCKWASHER (1/4" INTERNAL)

16

SCREW (1/4-20 X 3/4")

SCREW (1/4-20 X 3/4")

17

BUZZER KIT-HEAT INDICATOR

BUZZER KIT-HEAT INDICATOR

18

HARNESS

HARNESS

19

SCREW (#8 X 3/4")

SCREW (#8 X 3/4")

19

SCREW (6-32 X 1/4")

SCREW (6-32 X 1/4")

20

COIL-IGNITION (BLUE)

COIL-IGNITION (BLUE)

21

NUT (1/4-20)

NUT (1/4-20)

22

SPARKIE KIT

SPARKIE KIT

22A

SPARK PLUG (CHAMPION # UL-18V)

SPARK PLUG (CHAMPION # UL-18V)

23

TERMINAL KIT-BATTERY

TERMINAL KIT-BATTERY

24

CABLE-BATTERY

CABLE-BATTERY

25

Зажим

Зажим

26

SOLENOID-CHOKE

SOLENOID-CHOKE

27

NUT (8-32)

NUT (8-32)

28

BREAKER-CIRCUIT

BREAKER-CIRCUIT

29

DECAL-CIRCUIT BREAKER

DECAL-CIRCUIT BREAKER

30

SCREW (10-24 X 3/8")

SCREW (10-24 X 3/8")

31

Шайба

Шайба

32

BRACKET-CIRCUIT BREAKER

BRACKET-CIRCUIT BREAKER

33

NUT (10-32)

NUT (10-32)

34

LOCKWASHER (#10)

LOCKWASHER (#10)

35

HARNESS-WIRE

HARNESS-WIRE

36

RECTIFIER (RECTANGULAR)

RECTIFIER (RECTANGULAR)

37

SCREW (6-32 X 7/8")

SCREW (6-32 X 7/8")

38

SCREW (6-32 X 1/4")

SCREW (6-32 X 1/4")

39

LOCKWASHER (#6 INTERNAL)

LOCKWASHER (#6 INTERNAL)

40

SWITCH-NEUTRAL INTERLOCK

SWITCH-NEUTRAL INTERLOCK

41

SCREW (6-32 X 7/8")

SCREW (6-32 X 7/8")

42

Шайба

Шайба

43

THERMOSWITCH

THERMOSWITCH

44

Седло

Седло

45

BRACKET-TERMINAL BLOCK

BRACKET-TERMINAL BLOCK

46

RETAINER-CABLE CLAMP

RETAINER-CABLE CLAMP

47

SCREW (1/4-20 X 1/2")

SCREW (1/4-20 X 1/2")

48

Зажим

Зажим

49

BLOCK KIT-TERMINAL

BLOCK KIT-TERMINAL

50

CLIP-GROUND

CLIP-GROUND

51

SCREW (10-24 X 3/4")

SCREW (10-24 X 3/4")

52

SWITCH KIT-IGNITION (LONG)

SWITCH KIT-IGNITION (LONG)

53

SCREW (8-32 X 1/4")

SCREW (8-32 X 1/4")

54

KEY SET (NO LETTER OR STAMPED A)

KEY SET (NO LETTER OR STAMPED A)

54

KEY SET (STAMPED B)

KEY SET (STAMPED B)

54

KEY SET (STAMPED C)

KEY SET (STAMPED C)

54

KEY SET (STAMPED D)

KEY SET (STAMPED D)

54

KEY SET (STAMPED E)

KEY SET (STAMPED E)

55

MOUNTING KIT-IGNITION SWITCH

MOUNTING KIT-IGNITION SWITCH

56

SCREW (#6 X 1/2")

SCREW (#6 X 1/2")

57

RELAY-STARTER

RELAY-STARTER

58

LOCKWASHER (1/4")

LOCKWASHER (1/4")

59

LOCKWASHER (5/16")

LOCKWASHER (5/16")

60

NUT (5/16-18)

NUT (5/16-18)

61

BRACKET-ELECTRICAL MOUNT (PAINTED)

BRACKET-ELECTRICAL MOUNT (PAINTED)

62

MOUNT-SHOCK

MOUNT-SHOCK

63

Шпилька

Шпилька

64

LOCKWASHER (5/16" EXTERNAL)

LOCKWASHER (5/16" EXTERNAL)

65

Шайба

Шайба

66

COVER-TERMINAL BLOCK

COVER-TERMINAL BLOCK

67

PAD-INSULATING

PAD-INSULATING

68

BLOCK-TERMINAL (12 POSITION)

BLOCK-TERMINAL (12 POSITION)

69

CLIP-TERMINAL BLOCK COVER

CLIP-TERMINAL BLOCK COVER

70

SCREW (10-24 X 3/4")

SCREW (10-24 X 3/4")

-

ROPE AND HANDLE-EMERGENCY STARTER

ROPE AND HANDLE-EMERGENCY STARTER

-

CABLE TIE (8")

CABLE TIE (8")
