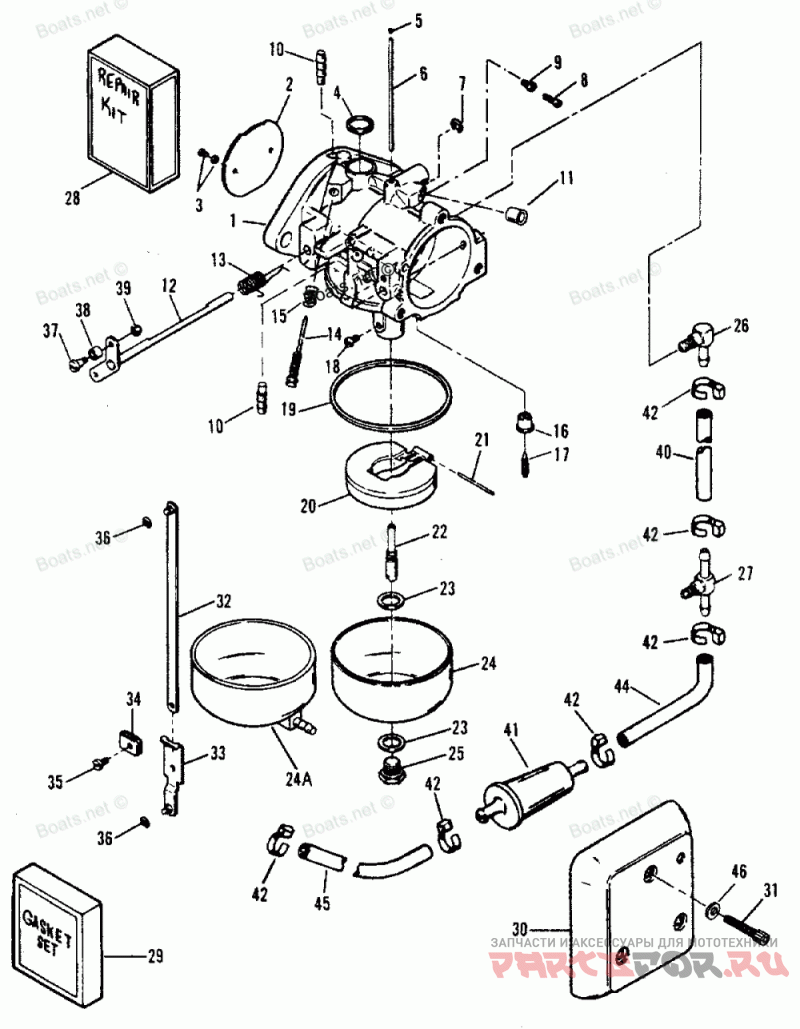

Carburetor (0e009500 - 0e093699) для лодочных моторов Force H1201E91H (1991)

Carburetor (0e009500 - 0e093699)

Force H1201E91H

oem код

название

цена

820203

CARBURETOR (TOP) (TC-119A)

820195

CARBURETOR (BOTTOM) (TC-120A)

SHUTTER-THROTTLE

SCREW-SHUTTER

PLUG-WELCH

PLUG-CUP

TUBE-BY-PASS

E-RING-THROTTLE SHAFT

SCREW-SEALING

JET (.047)-IDLE AIR

NOZZLE-PRIMER

CUP-METERING

SHAFT AND LEVER-THROTTLE

FO16143

SPRING-THROTTLE SHAFT

F10268

SCREW-IDLE MIXTURE

27160

SPRING-IDLE MIXTURE SCREW

SEAT-INLET

NEEDLE-INLET

GASKET-FUEL BOWL

FLOAT-FUEL BOWL

PIN-FLOAT

Жиклер главный

GASKET-FUEL BOWL

24A

820492

BOWL-FUEL (TOP CARB)

FO16130

BOWL-FUEL (BOTTOM CARB)

FO16132

SCREW-FUEL BOWL

F84314-2

ELBOW (L) (TOP CARB)

F85314-1

TEE (T) (BOTTOM CARB)

FK10103-2

REPAIR KIT-CARBURETOR

FK10023

GASKET SET-CARBURETOR

F511708-3

COVER-CARBURETOR

F2192

SCREW (1/4-20 X 1-3/4")

FA178233

TIE BAR ASSEMBLY-THROTTLE

END ASSEMBLY-TIE BAR

NUT (8-32)

SCREW (8-32 X 3/8")

E RING-RETAINING

SHAFT-THROTTLE ROLLER

Ролик

NUT (8-32)

Фильтр топливный

CABLE TIE (8")

Шайба

CARB. REPAIR KIT

CARB. REPAIR KIT
