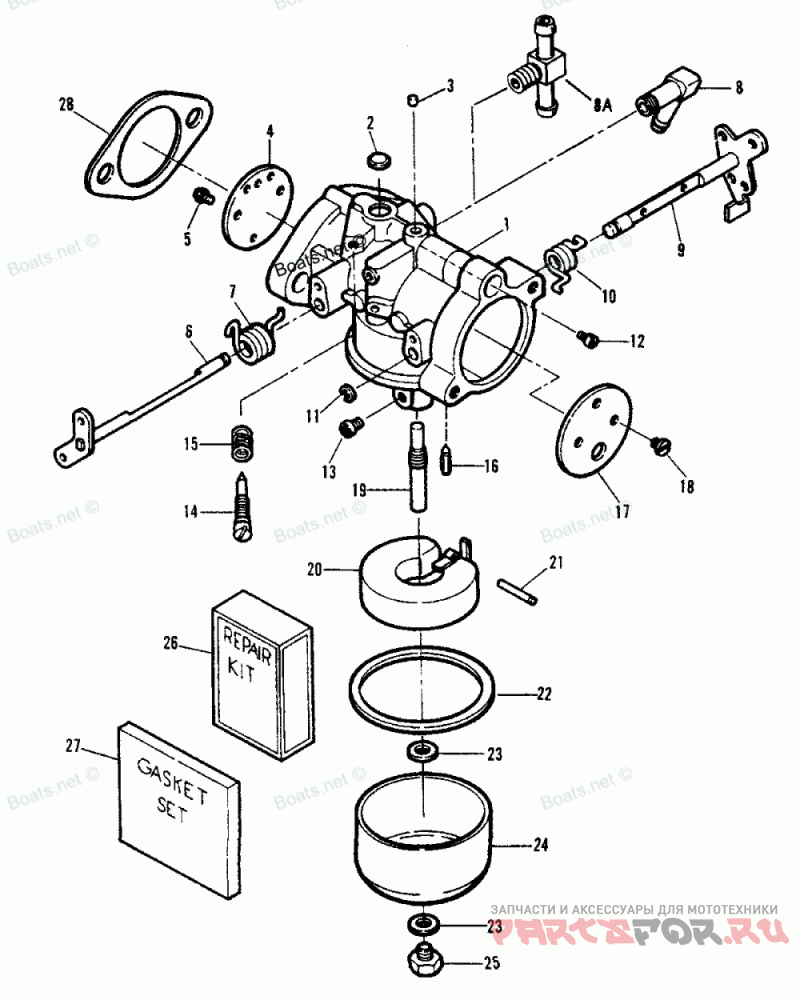

Carburetor 91e Thru 92c E000001,e009499

Force H0908E91E

Force
#oem кодцена
1
F831061-3
CARBURETOR (TOP - WB-101C)
1
F832061-3
CARBURETOR (CENTER/BOTTOM - WB-100C)
2
FO16128
PLUG, WELCH
3
FO10588
PLUG, CUP
4
F10315
SHUTTER, THROTTLE
5
F10328
SCREW, SHUTTER
6
F10305
SHAFT, THROTTLE
7
F10334
SPRING, THROTTLE SHAFT
8
F84314-2
ELBOW (TOP - "L" STYLE)
8
F85314-1
ELBOW (CENTER/BOTTOM - "T" STYLE)
9
F10299
SHAFT, CHOKE
10
F10300
SPRING, CHOKE SHAFT
11
F10241
E-RING, CHOKE SHAFT
12
F10356
JET, IDLE AIR (.036)
14
F10268
SCREW, IDLE MIXTURE
15
27160
SPRING, IDLE MIXTURE SCREW
16
FK10309
NEEDLE AND SEAT KIT, INLET
17
F10355
SHUTTER, CHOKE
18
F10328
SCREW, SHUTTER
19
F10302
Главный жиклер
20
F10346
FLOAT, FUEL BOWL
21
FO13944
Палец
22
FO15623
GASKET, FUEL BOWL
23
FO2510
GASKET, FUEL BOWL
24
F10333
BOWL, FUEL
25
5128
SCREW, FUEL BOWL
26
FK10357
REPAIR KIT, CARBURETOR
27
FK10323
GASKET SET, CARBURETOR
28
F85906
GASKET, CARBURETOR
-
FK10357
CARB REPAIR KIT
-
FK10323
CARB GASKET SET
