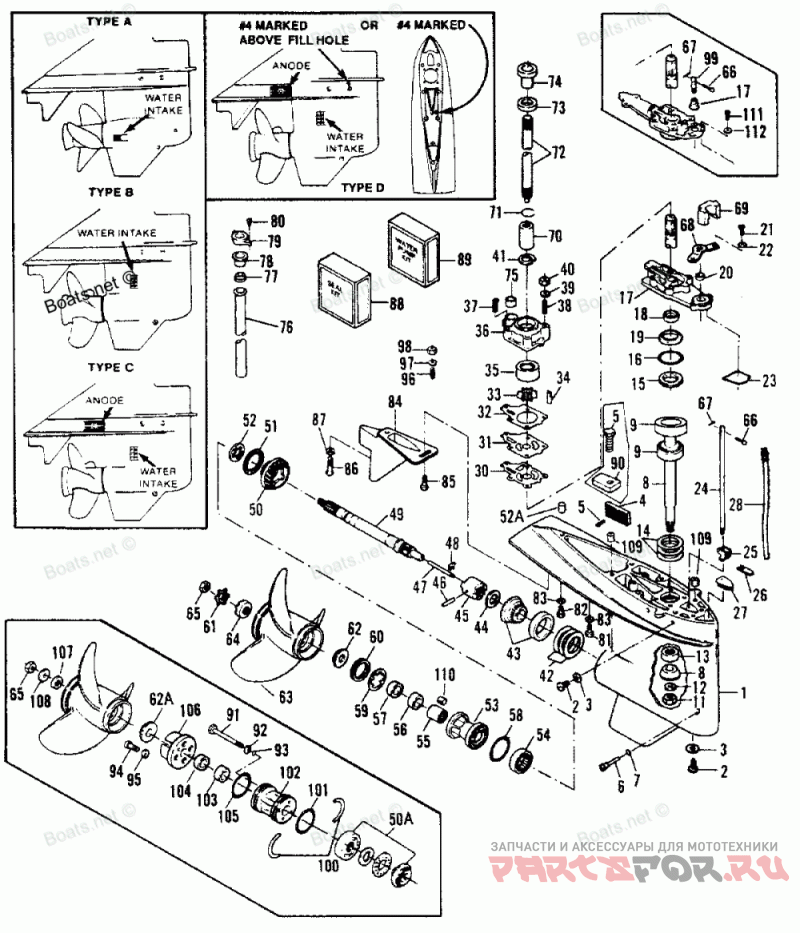

Gear Housing

Force H0908A91H

Force
#oem кодцена
--
817925A5
GEAR HSG. (COMPLETE-PAINTED-1.93:1) TYPE A & B
1
819190A3
GEAR HSG. (BASIC-PAINTED) TYPE A & B
--
820588A1
GEAR HSG. (COMPLETE-PAINTED-1.93:1) TYPE C
1
819231A13
GEAR HSG. KIT (BASIC-PAINTED) TYPE C
--
820588A7
GEAR HSG. (HI-ALT) (PAINTED-2.2:1) TYPE D
1
820588A6
GEAR HSG. (BASIC-PAINTED) TYPE D
2
F50109
Заглушка
3
19183
Шайба
4
819232
ANODE (TYPE C & D)
5
F2317
SCREW (1/4-20 X 7/8")
6
826374
PIN, GEAR SHIFT ARM, W/DL
7
25007
Уплотнительное кольцо
9
35924A1
Вкладыши комплект
11
826375
NUT (5/8-18) W/DL
12
92721
Шайба
13
42647A1
BEARING ASSEMBLY
14
819415A1
SHIM SET
15
F694961-1
RETAINER, DRIVESHAFT BEARING UPPER
16
90011
SEAL, DRIVESHAFT COVER
17
FK721706
COVER KIT (TYPE A -NOTE: BELLOWS ARE NLA)
17
818074A1
COVER ASSEMBLY (TYPE B & C & D)
18
819740
SEAL, DRIVESHAFT WATER PUMP
19
F694305
SEAL, DRIVESHAFT
20
817472
SEAL, GEAR SHIFT ROD, LOWER
21
F1999
SCREW (1/4-20 X 7/8")
22
26992
Шайба
23
F707305
SEAL, COVER
24
F694705
ROD, GEAR SHIFT, LOWER (TYPE A)
24
F523705-1
ROD, GEAR SHIFT, LOWER (TYPE B & C & D)
25
FA84621-1
COUPLING ASSEMBLY, GEAR SHIFT
26
F707885
RETAINER, PITOT PLUG
27
F694226
PLUG, PITOT TUBE
28
85822A12
CONNECTOR ASSEMBLY
30
F694830
GASKET, WATER PUMP LOWER
31
F699562
Пластина водяной помпы
32
F694031
GASKET, WATER PUMP, UPPER
33
F694065
Импеллер
34
F694498
KEY, DRIVESHAFT
35
F694564-1
INSERT, WATER PUMP
36
F694060-2
BODY, WATER PUMP
37
F2234
SCREW (#10 X 1-1/8") (TYPE B & C & D)
38
826372
STUD (1/4-28 X 3-1/8") WITH DRI LOC
39
71055
Шайба
40
13438
NUT (1/4-28)
41
F695830
Прокладка
42
819416A1
SHIM SET
43
FS694023
GEAR ASSY., FORWARD (1.93:1 - TYPE A)
43
FS707023
GEAR ASSY., FORWARD (1.93:1 - TYPE B & C)
43
816434A5
GEAR ASSY., FORWARD (1.93:1 - TYPE D)
43
819287A2
GEAR ASSY., FORWARD (2.2:1 - TYPE C & D)
44
819414A1
SPACER SET (89A THRU 92C MODELS)
45
816433
CLUTCH, SHIFT
46
F2419
Палец
47
F84871-1
Палец
48
F90619-2
YOKE, GEAR SHIFT
49
FA694098
PROPELLER SHAFT (TYPE A)
49
819284A3
PROPELLER SHAFT (TYPE B & C & D)
50A
F2A694662
GEAR ASSY., REVERSE (1.93:1 - TYPE A)
50
816435
GEAR, REVERSE (1.93:1 - TYPE B & C & D)
50
F722662
GEAR, REVERSE (2.2:1 - TYPE C & D)
51
12576
RING, THRUST
52
F707902
RING, THRUST
52A
F8580
PIN, LOCATING
53
FA707239
SPOOL ASSEMBLY, PROP SHAFT
54
12578
Подшипник
55
30956
Подшипник
56
F697555
SEAL, PROP SHAFT SPOOL
57
12224
SEAL, PROP SHAFT SPOOL
58
F707278
SEAL, PROP SHAFT SPOOL
59
F707286
WASHER, TAB
60
819217
Седло
61
816629
WASHER, TAB SEE PROPELLER REFERENCE CHART BOOK 90-826171940
62A
F523099-1
SPACER (TYPE A) SEE PROPELLER REFERENCE CHART BOOK 90-826171940
62
F698099-1
SPACER (TYPE B & C & D) SEE PROPELLER REFERENCE CHART BOOK 90-826171940
62
819057
SPACER (TYPE B & C & D) SEE PROPELLER REFERENCE CHART BOOK 90-826171940
64
F697299
WASHER (TYPE B & C & D) SEE PROPELLER REFERENCE CHART BOOK 90-826171940
64
F523282
WASHER (TYPE B & C & D) SEE PROPELLER REFERENCE CHART BOOK 90-826171940
65
52707A1
NUT KIT, PROP (3/4-16) SEE PROPELLER REFERENCE CHART BOOK 90-826171940
66
F85372
PIN, GEAR SHIFT ROD LOWER
67
F1015
Шплинт
68
819176
RETAINER, SHIFT ROD SEAL
69
F698735-1
SEAL, EXHAUST
70
F694125
COUPLING, DRIVESHAFT
71
818826
Стопорное кольцо
72
F694128
DRIVESHAFT (20")
72
F693128
DRIVESHAFT (25")
73
F438271
RETAINER, DRIVESHAFT SPLINE SEAL
74
819427
SEAL, DRIVESHAFT SPLINE
75
F694735-1
SEAL, WATERLINE
76
F523244
WATERLINE (20")
76
F500244
WATERLINE (25")
77
817491
Уплотнитель резиновый
78
F84342
SEAL, INLET WATERLINE UPPER
79
F692117
BRACKET, WATERLINE
80
28636
SCREW (1/4-20 X 3/4")
81
19924325
SCREW (5/16-18 X 3-1/4") WITH DRI LOC
82
19924100
SCREW (5/16-18 X 1") WITH DRI LOC
83
F506186
Шайба
84
F523116-4
SNOUT, EXHAUST
85
826377
RETAINER, EXHAUST SNOUT, W/DL
86
19928100
SCREW (5/16-18 X 1") WITH DRI LOC
87
F1856
Шайба
88
FK1203-1
Комплект сальников
89
FK1204-1
Рем.комплект помпы
90
F707485
ANODE (TYPE B)
91
F1885
SCREW (5/16-18 X 4-1/4") TYPE A
92
12038
WASHER TYPE A
93
62702
O-RING TYPE A
94
F1112
SCREW (1/4-20 X 7/8") TYPE A
95
26992
LOCKWASHER TYPE A
96
F694211
STUD TYPE A
97
F8143
WASHER TYPE A
98
29488
NUT (10-32) TYPE A
99
F694615
ROD, INTERMEDIATE SHIFT TYPE A
100
F523411
RING, RETAINING TYPE A
101
32507
O-RING TYPE A
102
F2A523239
SPOOL ASSEMBLY, PROPSHAFT TYPE A
103
30956
BEARING, ROLLER TYPE A
104
F506118-1
SEAL, PROPSHAFT SPOOL TYPE A
105
F24278
SEAL, PROPSHAFT SPOOL TYPE A
106
FA523485
ANODE KIT, ANTICORROSION TYPE A
107
F523282
WASHER, SPLINED TYPE A
108
F8167
WASHER TYPE A
109
F694043-2
Гильца
110
F8586
PIN, DOWEL.
111
F1999
SCREW (1/4-20 X 7/8") TYPE A
112
26992
LOCKWASHER (1/4") TYPE A
--
F719735-1
SEAL, EXHAUST (NOT ALL MODELS)
--
FK719059
SKEG REPAIR KIT
--
FK1203-1
GEAR HOUSING SEAL KIT
--
FK1204-1
Рем.комплект помпы
