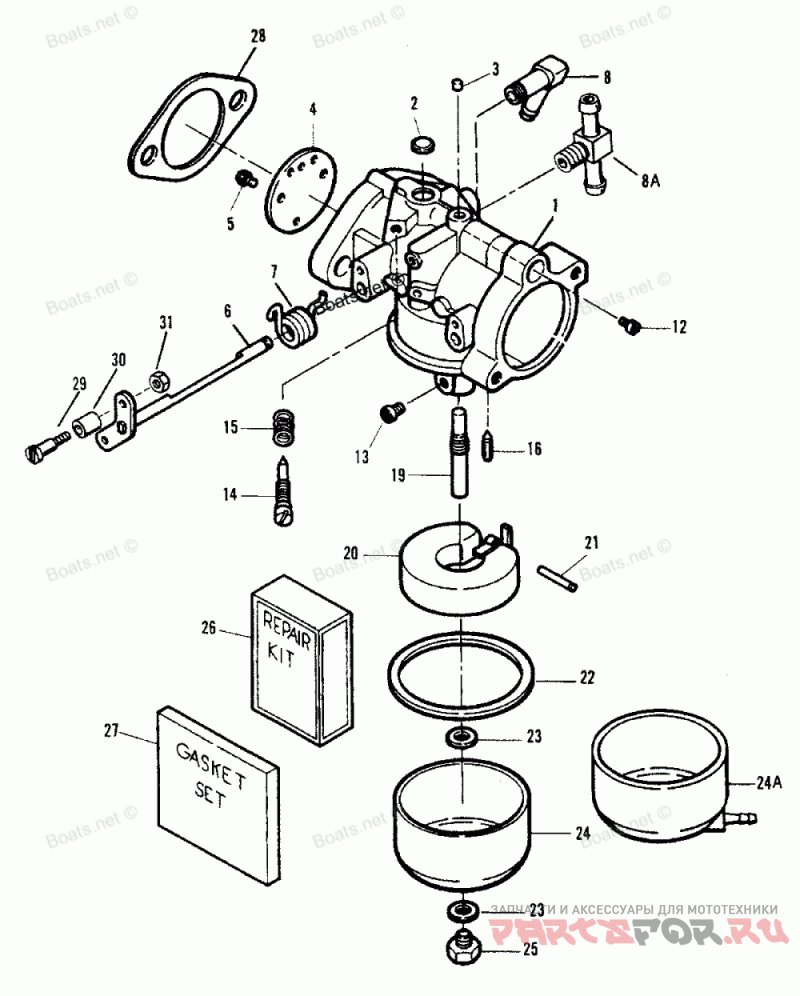

Carburetor E009500, E093699

Force H0906X91E

Force
#oem кодцена
1
8201991
CARBURETOR (TOP - WB-109B)
1
8202021
CARBURETOR (CENTER/BOTTOM - WB-108B)
2
FO16128
PLUG, WELCH
3
FO10588
PLUG, CUP
4
F10315
SHUTTER, THROTTLE
5
F10328
SCREW, SHUTTER
6
F10305
SHAFT, THROTTLE
7
F10334
SPRING, THROTTLE SHAFT
8
F84314-2
ELBOW (TOP - "L" STYLE)
8A
F85314-1
ELBOW (CENTER/BOTTOM - "T" STYLE)
12
5317
JET, IDLE AIR (.046)
14
F10268
SCREW, IDLE MIXTURE
15
27160
SPRING, IDLE MIXTURE SCREW
16
FK10309
NEEDLE AND SEAT KIT, INLET
19
F10302
Главный жиклер
20
F10346
FLOAT, FUEL BOWL
21
FO13944
Палец
22
FO15623
GASKET, FUEL BOWL
23
FO2510
GASKET, FUEL BOWL
24A
820491
BOWL, FUEL (TOP)
24
F10333
BOWL, FUEL (CENTER/BOTTOM)
25
5128
SCREW, FUEL BOWL
26
FK10357
REPAIR KIT, CARBURETOR
27
FK10323
GASKET SET, CARBURETOR
28
F85906
GASKET, CARBURETOR
29
F333316
SHAFT BOTTOM CARBURETOR
30
819225
ROLLER BOTTOM CARBURETOR
31
F1997
NUT(8-32) BOTTOM CARBURETOR
-
FK10357
CARB REPAIR KIT
-
FK10323
CARB GASKET SET
