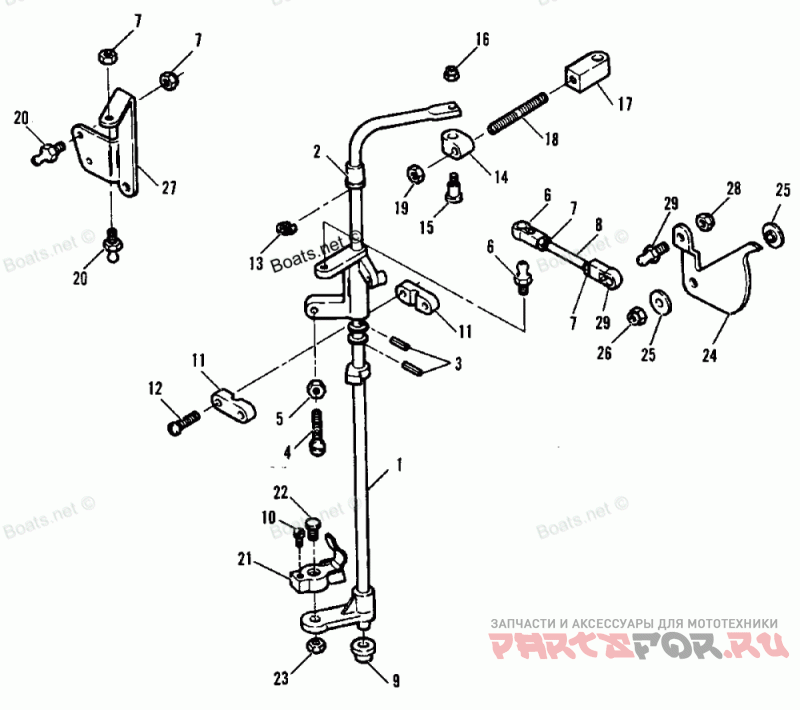

Towershaft Assembly (91b Thru 92c )

Force H0708F91B

Force
#oem кодцена
1
FA749838
TOWERSHAFT ASSEMBLY
2
819513
BUSHING, Towershaft Upper
3
38489
PIN, Roll
4
F1504
SCREW (1/4-20 x 1-1/4")
5
64015
NUT (1/4-20)
6
8177471
BALL JOINT ASSEMBLY
7
68219
NUT (10-32)
8
819002
LINK, Throttle
9
F40689-1
BEARING, Towershaft Lower
10
F2217
SCREW (10-24 x 3/8")
11
F607689
BEARING, Towershaft Center
12
F1829
SCREW (10-24 x 7/8")
13
13194
E RING, Bearing Retainer
14
F499035
END, Control Rod
15
F499026
SWIVEL, Towershaft
16
F7009
NUT (10-24)
17
F499036-1
END, Control Rod (1/4-28 LH)
18
F85445-1
ROD, Spark Control
19
F2015
NUT (1/4-28)
20
F98273
STUD, End Connector
21
FK405020
SWIVEL KIT, Cable Clamp
22
F405457
SCREW, Pivot
23
72008
NUT (1/4-20)
24
F749192
CAM, Throttle
25
F269319
BUSHING, Throttle Cam
26
72008
NUT (1/4-20)
27
F85872-2
BRACKET, Remote Cable
28
20110
NUT (10-32)
29
8177471
BALL JOINT ASSEMBLY
