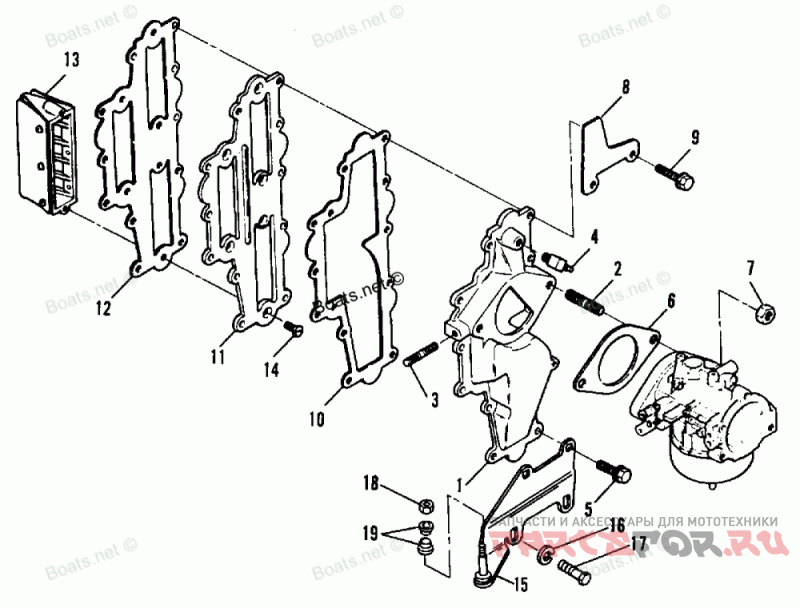

Fuel Intake System

Force H0708E91B

Force
#oem кодцена
1
FA749167
MANIFOLD KIT, Intake
2
826387
STUD (3/8-16 x 1-5/8") With Dry Loc, Carburetor
3
826389
STUD (1/4-20 x 1-1/4") With Dry Loc, Throttle Cam
4
8181031
ELBOW (91B Thru 92C)
4
88780
Колено
5
F1532
SCREW (1/4-20 x 1")
6
F440906
GASKET, Carburetor
7
86226
NUT (3/8-16)
8
F749894
POINTER, Timing
9
76213
SCREW (1/4-20 x 1-1/8")
10
819114
GASKET, Intake Manifold
11
820502
ADAPTER, Reed Plate
12
819113
GASKET, Reed Plate Adapter
13
11645
REED BLOCK ASSEMBLY
14
826380
SCREW (1/4-20 x 5/8") With Dry Loc
15
819459A1
BRACKET ASSY., Remote Cable
16
F8124
LOCKWASHER (5/16" External)
17
19921075
SCREW (5/16-18 x 3/4")With Dry Loc
18
34059
NUT (10-32)
19
819452
Втулка
-
818153A6
POWERHEAD ASSEMBLY
-
818153A10
POWERHEAD ASSEMBLY
-
818153A21
POWERHEAD ASSEMBLY
-
FG1037-1
Комплет прокладок
-
820724A1
Комплет прокладок
