Электрика

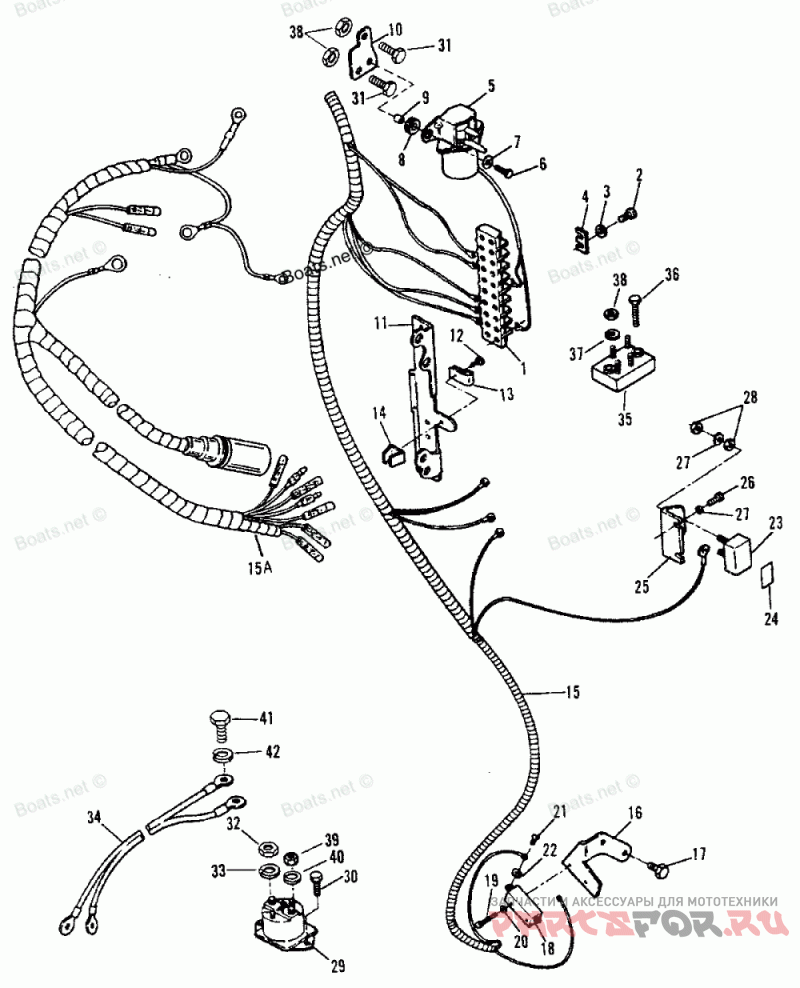

Force H1501X90C

Force
#oem кодцена
1
FA616497
BLOCK KIT-Terminal (2 Row-8 Position)
2
41069
SCREW (#10-24 x .750)
3
26996
LOCKWASHER (#10)
4
F307317
CLIP-Terminal Block Ground
5
F694924
SOLENOID-Primer
5
819503
SOLENOID-Primer
6
28636
SCREW (.250-20 x .750)
7
35044
Шайба
8
F694504
Уплотнитель резиновый
9
F694359
Проставка
10
819705
BRACKET-Solenoid
11
F439493-1
BRACKET-Terminal Block
12
34939
SCREW (.250-20 x .500)
13
F289446-1
Зажим
14
F438668
RETAINER-Cable Clamp
15
F694744-2
HARNESS ASSEMBLY-Wiring
15
F721744
HARNESS ASSEMBLY-Wiring
15
817459A1
HARNESS ASSEMBLY-Wiring
15A
823392A1
HARNESS ASSEMBLY-Wiring
16
819776
BRACKET-Neutral Interlock
17
F1532
SCREW (.250-20 x 1.00)
18
F84449
SWITCH-Neutral Interlock
19
F2193
SCREW (#6-32 x .875)
20
26995
Шайба
21
69080
SCREW (#6-32 x .250)
22
F1704
Шайба
23
F510460
BREAKER-Circuit
24
F510374-1
DECAL (Circuit Breaker)
25
F721446
BRACKET-Circuit Breaker
25
F91446-2
BRACKET-Breaker
26
41772
SCREW (#10-24 x .500)
27
26996
LOCKWASHER (#10)
28
68219
NUT (#10-32)
29
F460917-1
RELAY-Starter
30
90192
SCREW (.250-20 x .750)
31
F2030
SCREW (.250-20 x 1.250)
32
68292
NUT (.312-18)
33
53166
LOCKWASHER (.312)
34
F381896-4
CABLE ASSEMBLY-Battery
35
F369450-1
Регулятор напряжения
36
F2016
SCREW (#6-32 x .875)
37
F8056
LOCKWASHER (#8)
38
F1647
NUT (#8-32)
35
F699450
Реле регулятора
36
73286
SCREW (.250-20 x .500)
38
814101
NUT (.250-20)
39
68219
NUT (#10)
40
26996
LOCKWASHER (#10)
41
F2000
SCREW (.312-18 x .750)-Ground
42
53166
LOCKWASHER (.312)-Ground
